Trigon Negative Chipbreaker with Hole and Counterbore 0.130/0.134 in
Trigon Negative Chipbreaker with Hole and Counterbore 0.130/0.134 in
SKU:TUR-af98d4
Optimize turning with the Trigon Negative Chipbreaker, thickness 0.130/0.134 in, Angle 84°, Hole 0.104/0.108 in, Grade options available.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker with Hole and Counterbore 0.130/0.134 in
$34.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker with Hole and Counterbore 0.130/0.134 in
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your turning processes with the Trigon Negative Chipbreaker featuring a precise thickness of 0.130/0.134 in, an Inscribed Circle of 0.248/0.254 in, and an optimal Angle of 84°. The integrated hole of 0.104/0.108 in and Counterbore diameter of 0.142/0.146 in ensure efficient chip evacuation. Grade availability meets industry standards, ensuring high performance and reliability.
Ready to Grow Without Cash Flow Constraints?

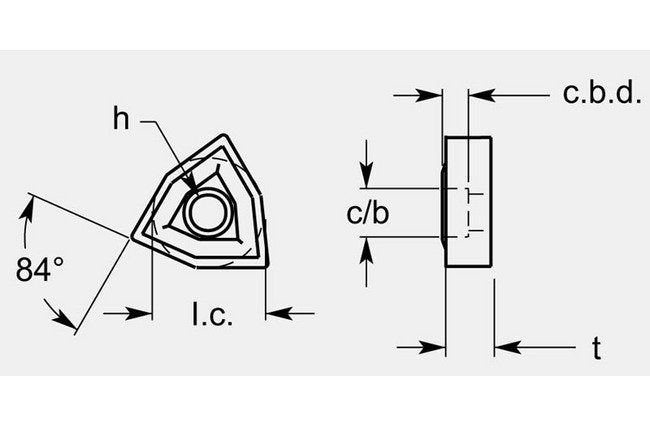

Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.142 / 0.146 in
Dimensional Specification Cbd
0.061 in
Dimensional Specification Hole
0.104 / 0.108 in
Dimensional Specification Inscribed Circle Ic
0.248/0.254 in
Dimensional Specification Thickness T
0.130 / 0.134 in
Grade Availability Grade Availability
Available on Request
