Trigon Negative Chipbreaker with Hole and Counterbore 0.130/0.134 in
Trigon Negative Chipbreaker with Hole and Counterbore 0.130/0.134 in
SKU:TUR-b1b5ef
Precision Trigon Negative Chipbreaker for precise turning operations. Thickness: 0.130/0.134 in. Optimal chip control for superior cutting accuracy.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker with Hole and Counterbore 0.130/0.134 in
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker with Hole and Counterbore 0.130/0.134 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

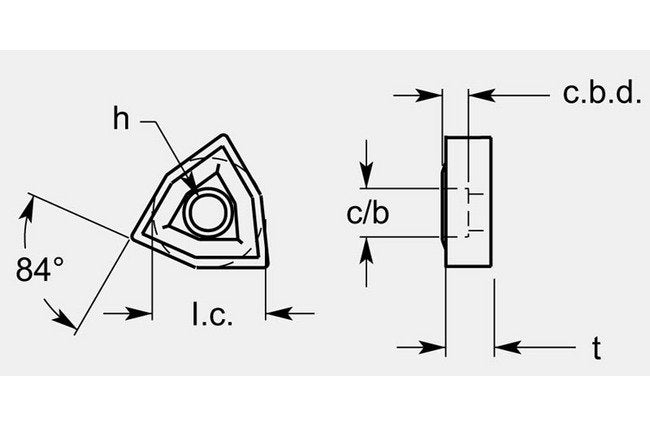

The Trigon Negative Chipbreaker with Hole and Counterbore in 0.130/0.134-inch thickness is a precision-engineered turning blank designed for exceptional performance. With an inscribed circle of 0.406/0.414 inches and an optimized 84-degree angle, this chipbreaker ensures efficient chip control and superior cutting accuracy. The strategically placed hole (0.147/0.151 in) and counterbore (CB: 0.210/0.214 in, CBD: 0.061 in) enhance cooling and chip evacuation, prolonging tool life and reducing machining downtime. Available in different grades upon request, this chipbreaker is a reliable choice for demanding turning applications.
Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.210 / 0.214 in
Dimensional Specification Cbd
0.061 in
Dimensional Specification Hole
0.147 / 0.151 in
Dimensional Specification Inscribed Circle Ic
0.406/0.414 in
Dimensional Specification Thickness T
0.130 / 0.134 in
Grade Availability Grade Availability
Available on Request
