Trigon Negative Chipbreaker with Hole and Counterbore, 0.130/0.134 in Thickness
Trigon Negative Chipbreaker with Hole and Counterbore, 0.130/0.134 in Thickness
SKU:TUR-6e1995
Enhance turning precision with the Trigon Negative Chipbreaker that offers 0.130-0.134in thickness & 84° angle. Customize grade availability upon request.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker with Hole and Counterbore, 0.130/0.134 in Thickness
$39.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker with Hole and Counterbore, 0.130/0.134 in Thickness
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

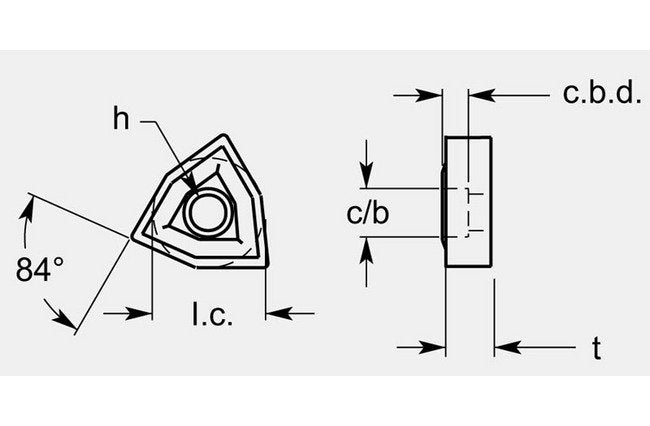

The Trigon Negative Chipbreaker with Hole and Counterbore offers exceptional precision with a thickness range of 0.130 to 0.134 inches, inscribed circle ranging from 0.327 to 0.333 inches, and an angle of 84 degrees. Designed to meet the demands of turning operations, this chipbreaker features holes measuring 0.104 to 0.108 inches, a CB range of 0.142 to 0.146 inches, and a CBD of 0.061 inches. Grade availability can be tailored upon request, ensuring compliance with varied industrial specifications.
Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.142 / 0.146 in
Dimensional Specification Cbd
0.061 in
Dimensional Specification Hole
0.104 / 0.108 in
Dimensional Specification Inscribed Circle Ic
0.327/0.333 in
Dimensional Specification Thickness T
0.130 / 0.134 in
Grade Availability Grade Availability
Available on Request
