Trigon Negative Chipbreaker with Hole and Counterbore 0.162/0.166 in
Trigon Negative Chipbreaker with Hole and Counterbore 0.162/0.166 in
SKU:TUR-8825a5
Enhance your turning operations with the precise Trigon Negative Chipbreaker. Thickness: 0.162/0.166 in. Ideal for institutional and consumer use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker with Hole and Counterbore 0.162/0.166 in
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker with Hole and Counterbore 0.162/0.166 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

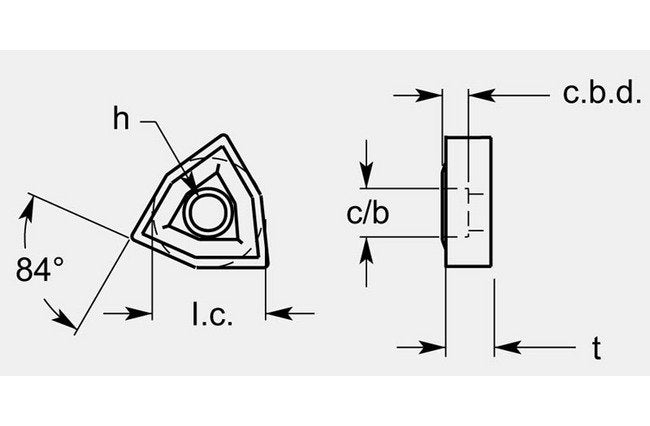

The Trigon Negative Chipbreaker with Hole and Counterbore offers precision and durability for turning operations. With a thickness of 0.162/0.166 in, an Inscribed Circle of 0.327/0.333 in, and an 84° cutting angle, this chipbreaker ensures efficient chip control and superior cutting performance. The included hole and counterbore, sized at 0.104/0.108 in and 0.142/0.146 in respectively, enhance versatility and accuracy in machining. Grade availability is customizable to meet specific requirements, making it an ideal choice for both consumer and institutional applications.
Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.142 / 0.146 in
Dimensional Specification Cbd
0.061 in
Dimensional Specification Hole
0.104 / 0.108 in
Dimensional Specification Inscribed Circle Ic
0.327/0.333 in
Dimensional Specification Thickness T
0.162 / 0.166 in
Grade Availability Grade Availability
Available on Request
