Trigon Negative Chipbreaker with Hole and Counterbore 0.162/0.166 in
Trigon Negative Chipbreaker with Hole and Counterbore 0.162/0.166 in
SKU:TUR-ee6e8e
Enhance turning operations with the Trigon Negative Chipbreaker; thickness 0.162/0.166in, exceptional performance, customizable grade availability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker with Hole and Counterbore 0.162/0.166 in
$49.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker with Hole and Counterbore 0.162/0.166 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Negative Chipbreaker with Hole and Counterbore, featuring a thickness of 0.162/0.166 in, offers precision and durability in turning operations. Crafted for exceptional performance, it comes with an Inscribed Circle ranging from 0.327 to 0.333 in, an Angle of 84°, a hole diameter of 0.104/0.108 in, and Counterbore dimensions of 0.142/0.146 in. Grade Availability is customizable upon request, ensuring compliance with varied application needs.

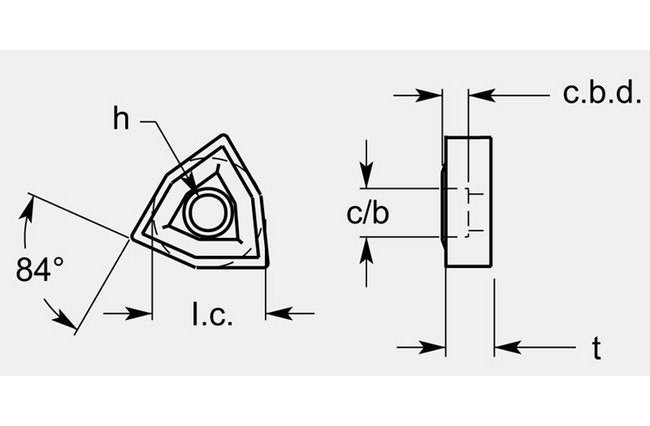

Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.142 / 0.146 in
Dimensional Specification Cbd
0.061 in
Dimensional Specification Hole
0.104 / 0.108 in
Dimensional Specification Inscribed Circle Ic
0.327/0.333 in
Dimensional Specification Thickness T
0.162 / 0.166 in
Grade Availability Grade Availability
Available on Request
