Trigon Negative Chipbreaker with Hole and Counterbore, 0.162/0.166 in
Trigon Negative Chipbreaker with Hole and Counterbore, 0.162/0.166 in
SKU:TUR-5dfecd
Precision Trigon Negative Chipbreaker for efficient turning, 0.162/0.166 in. Grade options available on request.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker with Hole and Counterbore, 0.162/0.166 in
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker with Hole and Counterbore, 0.162/0.166 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

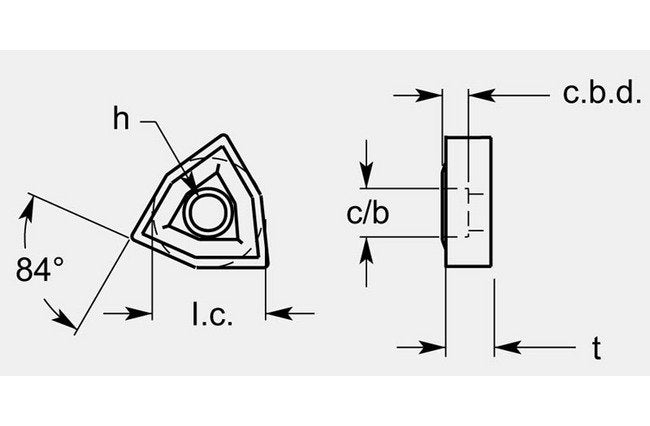

The Trigon Negative Chipbreaker with Hole and Counterbore is precision-engineered for turning applications, offering a thickness of 0.162 / 0.166 inches, inscribed circle of 0.327/0.333 inches, and an angle of 84 degrees. With hole and counterbore dimensions of 0.104 / 0.108 inches and 0.142 / 0.146 inches respectively, this chipbreaker guarantees optimal performance and efficiency. Grade availability can be requested for specific requirements, ensuring suitability for various turning blanks applications.
Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.142 / 0.146 in
Dimensional Specification Cbd
0.061 in
Dimensional Specification Hole
0.104 / 0.108 in
Dimensional Specification Inscribed Circle Ic
0.327/0.333 in
Dimensional Specification Thickness T
0.162 / 0.166 in
Grade Availability Grade Availability
Available on Request
