Trigon Negative Chipbreaker with Hole and Counterbore - 0.162/0.166in
Trigon Negative Chipbreaker with Hole and Counterbore - 0.162/0.166in
SKU:TUR-fbc676
Enhance turning precision with our Trigon Negative Chipbreaker - 0.162/0.166in thickness. Customizable grade options available.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker with Hole and Counterbore - 0.162/0.166in
$49.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker with Hole and Counterbore - 0.162/0.166in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Negative Chipbreaker with Hole and Counterbore is a precision-engineered turning tool designed for optimum performance. With a thickness of 0.162/0.166 inches and an Inscribed Circle of 0.406/0.414 inches, this chipbreaker ensures superior cutting accuracy and efficiency. The 84-degree angle, coupled with the precise hole and counterbore specifications, allows for seamless chip evacuation and enhanced chip control. Grade Availability can be customized upon request, making it adaptable to diverse turning operations. This chipbreaker is crafted to meet the stringent standards of government and institutional procurement requirements.
Product Specifications

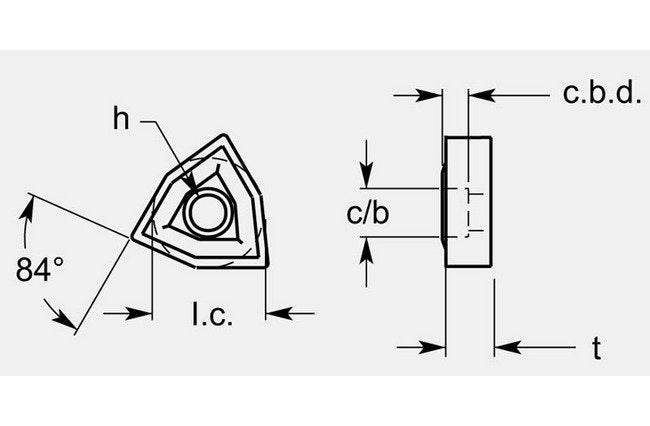

Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.209 / 0.215 in
Dimensional Specification Cbd
0.058 / 0.064 in
Dimensional Specification Hole
0.146 / 0.152 in
Dimensional Specification Inscribed Circle Ic
0.406/0.414 in
Dimensional Specification Thickness T
0.162 / 0.166 in
Grade Availability Grade Availability
Available on Request
