Trigon Negative Chipbreaker with Hole and Counterbore - 0.214 / 0.220 in Thickness
Trigon Negative Chipbreaker with Hole and Counterbore - 0.214 / 0.220 in Thickness
SKU:TUR-6302bc
Precision-engineered Trigon Negative Chipbreaker with Hole and Counterbore for precise cutting and superior chip control. Available in custom grades.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker with Hole and Counterbore - 0.214 / 0.220 in Thickness
$49.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker with Hole and Counterbore - 0.214 / 0.220 in Thickness
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Negative Chipbreaker with Hole and Counterbore is a precision-engineered turning blank designed for exceptional performance. With a thickness of 0.214 to 0.220 inches, an inscribed circle range of 0.707 to 0.713 inches, and an angular design of 84 degrees, this chipbreaker ensures precise cutting and superior chip control. The incorporated hole and counterbore feature, with dimensions of 0.225 to 0.231 inches and 0.292 to 0.298 inches respectively, enhances versatility and efficiency in machining applications. Grade availability can be tailored to specific requirements, making this chipbreaker a top choice for demanding turning projects.

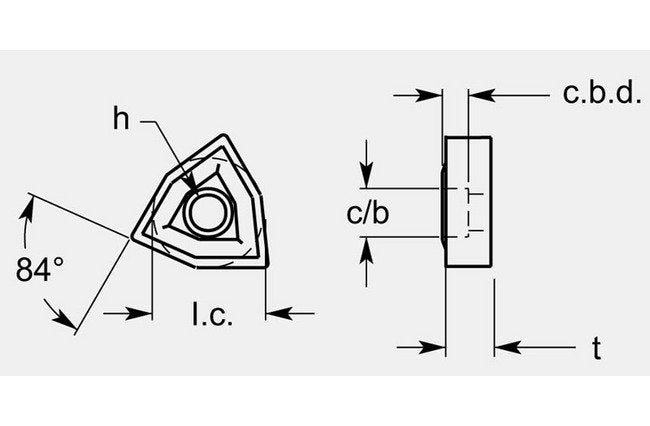

Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.292 / 0.298 in
Dimensional Specification Cbd
0.090 / 0.096 in
Dimensional Specification Hole
0.225 / 0.231 in
Dimensional Specification Inscribed Circle Ic
0.707/0.713 in
Dimensional Specification Thickness T
0.214 / 0.220 in
Grade Availability Grade Availability
Available on Request
