Trigon Negative Chipbreaker with Hole and Counterbore - 0.253/0.259 in
Trigon Negative Chipbreaker with Hole and Counterbore - 0.253/0.259 in
SKU:TUR-16ada2
Enhance turning precision with the Trigon Chipbreaker - 0.253/0.259 in. Optimal chip control and superior performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker with Hole and Counterbore - 0.253/0.259 in
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker with Hole and Counterbore - 0.253/0.259 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Negative Chipbreaker with Hole and Counterbore features a precise thickness of 0.253 - 0.259 inches, ensuring optimal performance in turning operations. With an inscribed circle of 0.707 - 0.713 inches and an angle of 84 degrees, this chipbreaker is designed for precision. The integrated hole of 0.225 - 0.231 inches and counterbore of 0.292 - 0.298 inches enhance chip control and chip evacuation. Grade availability can be tailored to specific requirements upon request.
Ready to Grow Without Cash Flow Constraints?

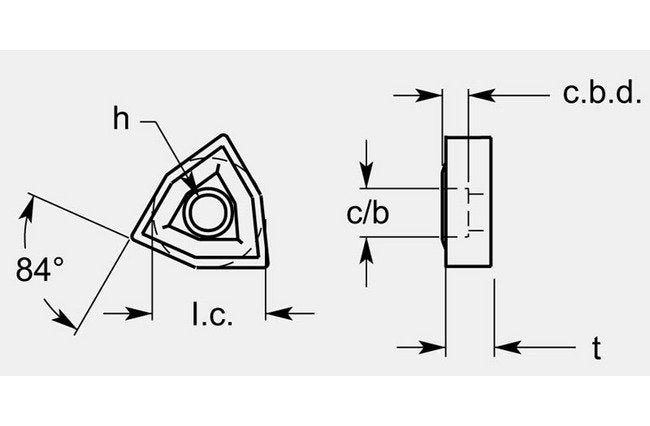

Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.292 / 0.298 in
Dimensional Specification Cbd
0.090 / 0.096 in
Dimensional Specification Hole
0.225 / 0.231 in
Dimensional Specification Inscribed Circle Ic
0.707/0.713 in
Dimensional Specification Thickness T
0.253 / 0.259 in
Grade Availability Grade Availability
Available on Request
