Trigon Negative Chipbreaker with Hole and Counterbore, Thickness 0.130-0.134 in
Trigon Negative Chipbreaker with Hole and Counterbore, Thickness 0.130-0.134 in
SKU:TUR-0b63d6
Experience superior chip breaking with the Trigon Negative Chipbreaker - 0.130-0.134 in, ideal for precision turning processes.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker with Hole and Counterbore, Thickness 0.130-0.134 in
$49.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker with Hole and Counterbore, Thickness 0.130-0.134 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Negative Chipbreaker with Hole and Counterbore, featuring a thickness of 0.130-0.134 inches, combines precision engineering with durability. Crafted for turning blanks, this chipbreaker boasts an Inscribed Circle of 0.406-0.414 inches, an Angle of 84 degrees, and a hole size of 0.146-0.152 inches. With hole and counterbore dimensions of 0.209-0.215 inches and 0.058-0.064 inches respectively, this grade is available on request, meeting the highest standards of quality and performance for both consumer and institutional buyers.
Product Specifications

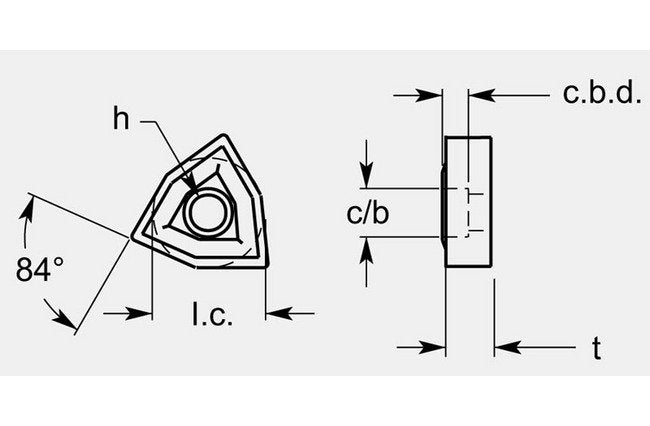

Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.209 / 0.215 in
Dimensional Specification Cbd
0.058 / 0.064 in
Dimensional Specification Hole
0.146 / 0.152 in
Dimensional Specification Inscribed Circle Ic
0.406/0.414 in
Dimensional Specification Thickness T
0.130 / 0.134 in
Grade Availability Grade Availability
Available on Request
