Trigon Negative Chipbreaker with Hole and Counterbore, Thickness 0.162/0.166 in
Trigon Negative Chipbreaker with Hole and Counterbore, Thickness 0.162/0.166 in
SKU:TUR-641c57
Enhance turning precision with the Trigon Negative Chipbreaker, 0.162/0.166 in thickness for efficient machining. Grade customization available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Negative Chipbreaker with Hole and Counterbore, Thickness 0.162/0.166 in
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Chipbreaker with Hole and Counterbore, Thickness 0.162/0.166 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Negative Chipbreaker with Hole and Counterbore, featuring a Thickness of 0.162/0.166 in, offers precision in turning operations. With an Inscribed Circle of 0.406/0.414 in and an Angle of 84°, this chipbreaker ensures efficient machining. The integrated Hole and Counterbore enhance versatility. Grade availability can be tailored as per requirements. This product is designed to meet rigorous machining demands and is suitable for diverse turning applications.

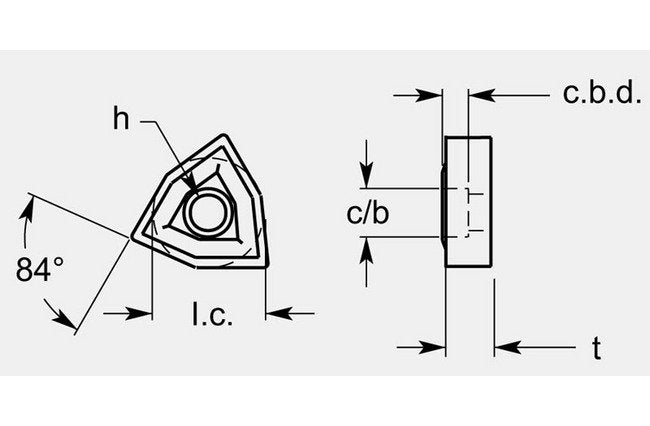

Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.210 / 0.214 in
Dimensional Specification Cbd
0.061 in
Dimensional Specification Hole
0.147 / 0.149 in
Dimensional Specification Inscribed Circle Ic
0.406/0.414 in
Dimensional Specification Thickness T
0.162 / 0.166 in
Grade Availability Grade Availability
Available on Request
