Trigon Negative F5 Chipbreaker for Precision Turning, Thickness 0.109 / 0.115 in
Trigon Negative F5 Chipbreaker for Precision Turning, Thickness 0.109 / 0.115 in
SKU:TUR-729e71
Enhance precision turning with the Trigon Negative F5 Chipbreaker. Ideal for finishing operations. Customizable grades available.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Trigon Negative F5 Chipbreaker for Precision Turning, Thickness 0.109 / 0.115 in
$45.99
Quantity: 1
Claim Your Seller Account
Trigon Negative F5 Chipbreaker for Precision Turning, Thickness 0.109 / 0.115 in
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Negative F5 Chipbreaker with ISO Style Hole is expertly designed for precision turning applications. Featuring a thickness of 0.109 / 0.115 inches and an Inscribed Circle of 0.264 / 0.270 inches, this chipbreaker is ideal for finishing operations. With a design suitable for radii of (1) or smaller and an 80-degree angle, it ensures optimal performance. Grade availability can be customized based on request, catering to specific operational requirements.

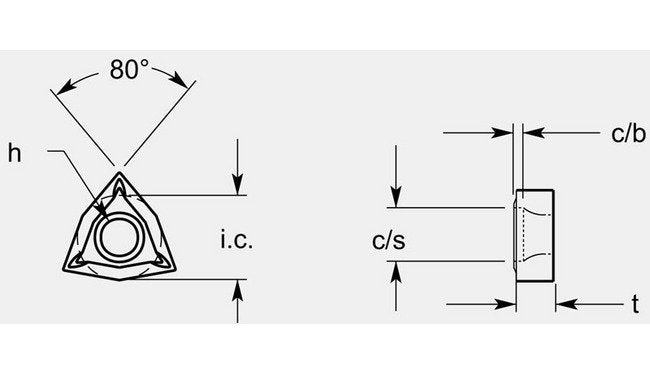

Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.143 / 0.149 in
Dimensional Specification Cbd
0.029 / 0.035 in
Dimensional Specification Design For Rad
(1) or smaller
Dimensional Specification Hole
0.107 / 0.113 in
Dimensional Specification Inscribed Circle Ic
0.264/0.270 in
Dimensional Specification Thickness T
0.109 / 0.115 in
Grade Availability Grade Availability
Available on Request
