Trigon Negative F5 Chipbreaker with ISO Style Hole 0.078/0.084 in
Trigon Negative F5 Chipbreaker with ISO Style Hole 0.078/0.084 in
SKU:TUR-fb313e
Precision Trigon Negative F5 Chipbreaker for finishing operations, 0.078/0.084 in thickness, various grades available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Negative F5 Chipbreaker with ISO Style Hole 0.078/0.084 in
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Negative F5 Chipbreaker with ISO Style Hole 0.078/0.084 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Negative F5 Chipbreaker with ISO Style Hole in 0.078/0.084 in thickness is a precision-engineered turning tool designed for finishing operations. With an inscribed circle of 0.201/0.207 in, a cutting angle of 80 degrees, and a hole size of 0.082/0.088 in, this chipbreaker ensures optimal performance. It features a design for radii of 1 inch or smaller. Available in various grades upon request, this tool offers exceptional versatility and accuracy for turning applications.
Ready to Grow Without Cash Flow Constraints?

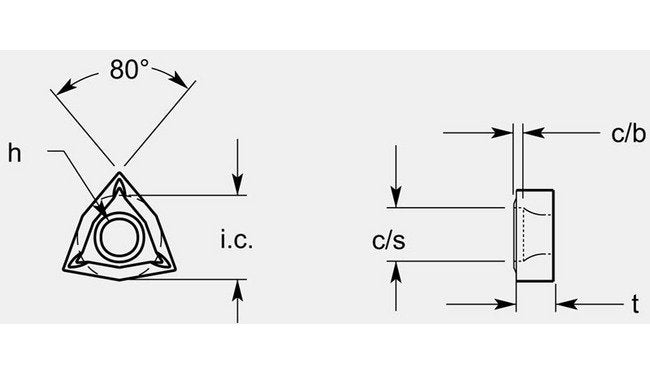

Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.111 / 0.117 in
Dimensional Specification Cbd
0.017 / 0.023 in
Dimensional Specification Design For Rad
(1) or smaller
Dimensional Specification Hole
0.082 / 0.088 in
Dimensional Specification Inscribed Circle Ic
0.201/0.207 in
Dimensional Specification Thickness T
0.078 / 0.084 in
Grade Availability Grade Availability
Available on Request
