Trigon Negative F5 Chipbreaker with ISO Style Hole, 0.094 / 0.100 in
Trigon Negative F5 Chipbreaker with ISO Style Hole, 0.094 / 0.100 in
SKU:TUR-7a3112
Experience precision turning with the Trigon Negative F5 Chipbreaker. Ideal for finishing operations. Customize grade availability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Negative F5 Chipbreaker with ISO Style Hole, 0.094 / 0.100 in
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Negative F5 Chipbreaker with ISO Style Hole, 0.094 / 0.100 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

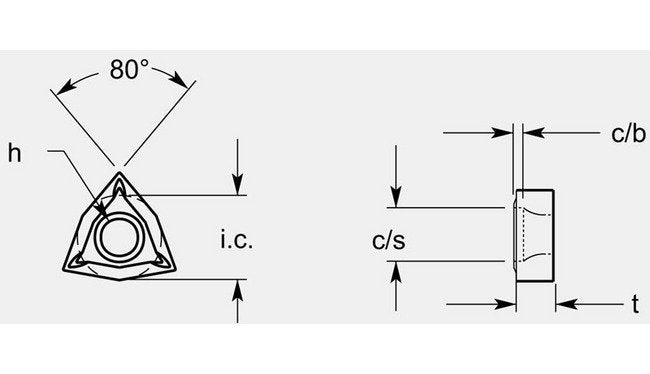

The Trigon Negative F5 Chipbreaker features a thickness of 0.094 / 0.100 in, an Inscribed Circle of 0.201/0.207 in, and an 80° Angle for precise finishing operations. With a hole size of 0.082 / 0.088 in and a design suitable for radii of (1) or smaller, this chipbreaker guarantees high-performance turning. Grade Availability is customizable based on specific requirements, ensuring superior results tailored to your needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.111 / 0.117 in
Dimensional Specification Cbd
0.017 / 0.023 in
Dimensional Specification Design For Rad
(1) or smaller
Dimensional Specification Hole
0.082 / 0.088 in
Dimensional Specification Inscribed Circle Ic
0.201/0.207 in
Dimensional Specification Thickness T
0.094 / 0.100 in
Grade Availability Grade Availability
Available on Request
