Trigon Negative F5 Chipbreaker with ISO Style Hole, 0.109 / 0.115 in Thickness
Trigon Negative F5 Chipbreaker with ISO Style Hole, 0.109 / 0.115 in Thickness
SKU:TUR-051e00
Enhance turning operations with the Trigon Negative F5 Chipbreaker for precise finishing. Thickness: 0.109 / 0.115 in.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Negative F5 Chipbreaker with ISO Style Hole, 0.109 / 0.115 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Negative F5 Chipbreaker with ISO Style Hole, 0.109 / 0.115 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

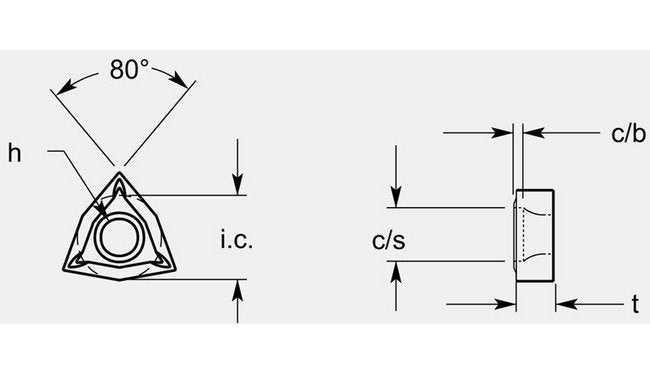

The Trigon Negative F5 Chipbreaker with ISO Style Hole offers precision and performance for turning operations. With a thickness range of 0.109 to 0.115 inches, an inscribed circle of 0.264 to 0.270 inches, and an 80-degree angle, this chipbreaker is designed for finishing operations. Its hole diameter ranges from 0.107 to 0.113 inches, with a CB of 0.143 to 0.149 inches and a CBD of 0.029 to 0.035 inches. Available on request with various grades, this chipbreaker ensures quality results and reliable machining.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.143 / 0.149 in
Dimensional Specification Cbd
0.029 / 0.035 in
Dimensional Specification Design For Rad
2
Dimensional Specification Hole
0.107 / 0.113 in
Dimensional Specification Inscribed Circle Ic
0.264/0.270 in
Dimensional Specification Thickness T
0.109 / 0.115 in
Grade Availability Grade Availability
Available on Request
