Trigon Negative GP3 Chipbreaker with Hole
Trigon Negative GP3 Chipbreaker with Hole
SKU:TUR-b7f559
Achieve precision machining with the Utility Trigon Negative GP3 Chipbreaker featuring a 0.197-0.203" thickness range and 80-degree cutting angle.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Trigon Negative GP3 Chipbreaker with Hole
$34.99
Quantity: 1
Claim Your Seller Account
Trigon Negative GP3 Chipbreaker with Hole
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Utility Trigon Negative GP3 Chipbreaker with Hole is a precision-engineered turning blank designed for superior performance in machining operations. With a thickness range of 0.197 to 0.203 inches, an inscribed circle of 0.497 to 0.503 inches, and an 80-degree cutting angle, this chipbreaker excels in general-purpose applications. The integrated hole measuring 0.200 to 0.206 inches adds versatility to the design. Crafted to meet stringent quality standards, this chipbreaker delivers accuracy and reliability in every use, making it an ideal choice for both consumer and institutional buyers.

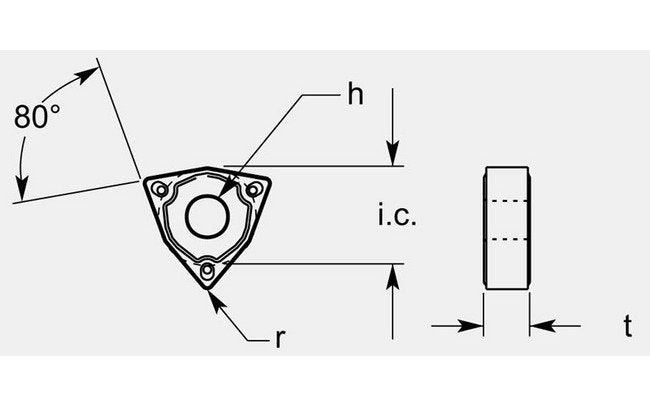

Product Specifications
Classifications Operation
General Purpose
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.197 / 0.203 in
Grade Availability Grade Availability
Available on Request
