Trigon Negative RA Chipbreaker with Hole, 0.196/0.202 in

Trigon Negative RA Chipbreaker with Hole, 0.196/0.202 in

SKU:TUR-201b30

Enhance turning operations with the precise and durable Utility Trigon Negative RA Chipbreaker with Hole.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Trigon Negative RA Chipbreaker with Hole, 0.196/0.202 in

Trigon Negative RA Chipbreaker with Hole, 0.196/0.202 in

$24.99

Quantity: 1

Claim Your Seller Account

Trigon Negative RA Chipbreaker with Hole, 0.196/0.202 in

Trigon Negative RA Chipbreaker with Hole, 0.196/0.202 in

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

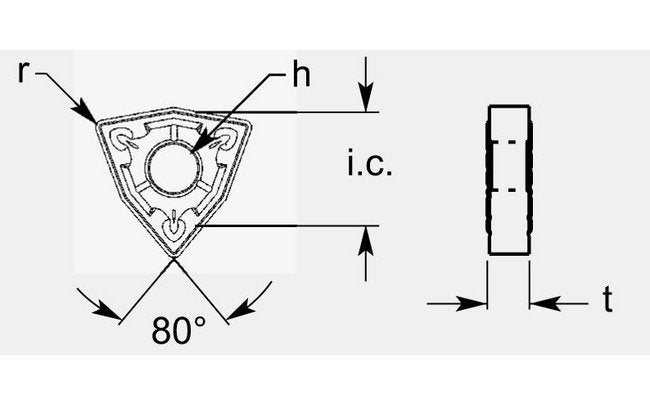

The Utility Trigon Negative RA Chipbreaker with Hole offers exceptional performance in turning operations, featuring a thickness of 0.196/0.202 in, an Inscribed Circle of 0.497/0.503 in, a radius of 1/32 in, and an 80° angle. Designed for roughing applications, this chipbreaker ensures precise cutting efficiency and durability. Grade availability can be tailored to specific requirements upon request.

Product Specifications

Classifications Operation
Roughing
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.196 / 0.202 in
Grade Availability Grade Availability
Available on Request
