Trigon Negative Turning Blank with Hole, 1/16" Radius
Trigon Negative Turning Blank with Hole, 1/16" Radius
SKU:TUR-55dba8
Precision Trigon Negative Turning Blank with Hole, 1/16" Radius. Ideal for demanding projects.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Trigon Negative Turning Blank with Hole, 1/16" Radius
$34.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Turning Blank with Hole, 1/16" Radius
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

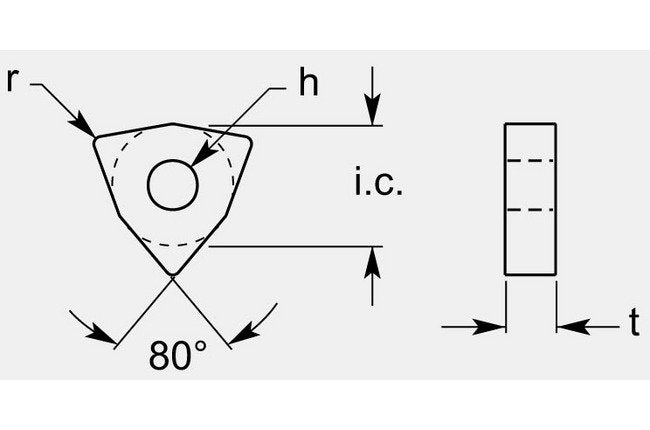

The Trigon Negative Turning Blank with Hole features a precise Thickness of 0.132-0.138 in, Inscribed Circle of 0.372-0.378 in, and a 1/16" Radius. With an Angle of 80° and a hole diameter of 0.147-0.153 in, this blank delivers exceptional accuracy and versatility. Grade Availability tailored to your requirements. Ideal for turning projects that demand exact specifications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.147 / 0.153 in
Dimensional Specification Inscribed Circle Ic
0.372/0.378 in
Dimensional Specification Radius R
1/16 in
Dimensional Specification Thickness T
0.132 / 0.138 in
Grade Availability Grade Availability
Available on Request
