Trigon Negative Turning Blank with Hole and Counterbore, 0.129 / 0.135 in
Trigon Negative Turning Blank with Hole and Counterbore, 0.129 / 0.135 in
SKU:TUR-4cbbee
High-precision Trigon Negative Turning Blank for turning operations, thickness 0.129 / 0.135 in, customizable grade available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Negative Turning Blank with Hole and Counterbore, 0.129 / 0.135 in
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Turning Blank with Hole and Counterbore, 0.129 / 0.135 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Negative Turning Blank with Hole and Counterbore, featuring a thickness range of 0.129 to 0.135 inches, offers exceptional precision for turning operations. With an Inscribed Circle of 0.407 to 0.413 inches and a unique design including a hole of 0.147 to 0.151 inches, this blank ensures efficient performance. Grade Availability is customizable upon request, meeting various institutional procurement standards.
Ready to Grow Without Cash Flow Constraints?

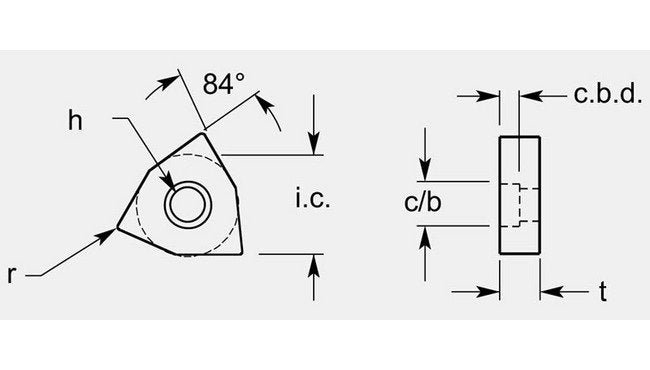

Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.210 / 0.214 in
Dimensional Specification Cbd
0.061 in
Dimensional Specification Hole
0.147 / 0.151 in
Dimensional Specification Inscribed Circle Ic
0.407/0.413 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.129 / 0.135 in
Grade Availability Grade Availability
Available on Request
