Trigon Negative Turning Blank with Hole and Counterbore, Thickness 0.128/0.136 in
Trigon Negative Turning Blank with Hole and Counterbore, Thickness 0.128/0.136 in
SKU:TUR-d7ee72
Precision Trigon Negative Turning Blank for versatile applications. Thickness: 0.128/0.136 in. Ideal for consumers & institutions.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Negative Turning Blank with Hole and Counterbore, Thickness 0.128/0.136 in
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Negative Turning Blank with Hole and Counterbore, Thickness 0.128/0.136 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Negative Turning Blank with Hole and Counterbore offers precision with a thickness range of 0.128 to 0.136 inches. Designed with an Inscribed Circle of 0.327 to 0.333 inches, Radius of 0.008 inches, and an Angle of 84 degrees, this blank provides exceptional accuracy for turning applications. The integrated hole and Counterbore features further enhance its versatility, making it ideal for both consumer and institutional use.

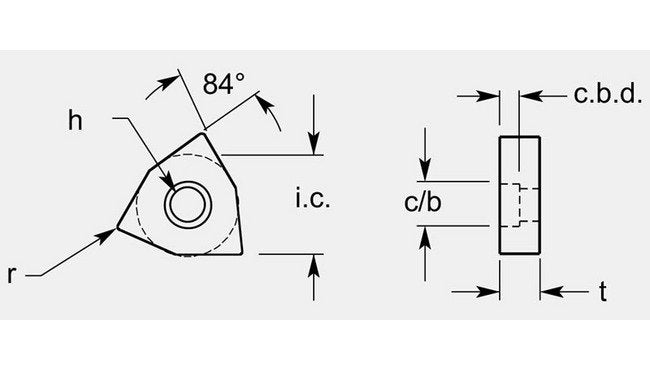

Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.142 / 0.146 in
Dimensional Specification Cbd
0.061 in
Dimensional Specification Hole
0.104 / 0.108 in
Dimensional Specification Inscribed Circle Ic
0.327/0.333 in
Dimensional Specification Radius R
0.008 in
Dimensional Specification Thickness T
0.128 / 0.136 in
Grade Availability Grade Availability
Available on Request
