Trigon Negative with Hole Turning Blank, 3/64 in Radius
Trigon Negative with Hole Turning Blank, 3/64 in Radius
SKU:TUR-e07e0d
Premium Trigon Negative with Hole turning blank for precise turning operations. Customizable grades available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Negative with Hole Turning Blank, 3/64 in Radius
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Negative with Hole Turning Blank, 3/64 in Radius
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

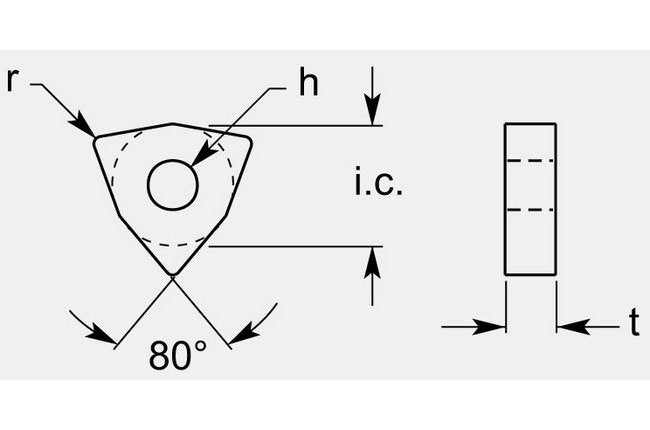

The Trigon Negative with Hole turning blank offers precise dimensions, with a Thickness (t) of 0.200 / 0.208 in, an Inscribed Circle (i.c.) of 0.497/0.503 in, and an Angle (a) of 80°. The 3/64 in Radius ensures accurate turning operations. Grade Availability is customizable upon request, meeting diverse institutional procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.200 / 0.208 in
Grade Availability Grade Availability
Available on Request
