Trigon Positive Hole Counterbore Turning Blank
Trigon Positive Hole Counterbore Turning Blank
SKU:TUR-8a6a45
High-quality Trigon positive turning blank with precise dimensions for CNC applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Positive Hole Counterbore Turning Blank
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Positive Hole Counterbore Turning Blank
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Positive Hole Counterbore Turning Blank features a precise dimensional specification with a thickness of 0.173 to 0.179 inches, inscribed circle diameter of 0.387 to 0.393 inches, and an angle of 80 degrees. Designed for radius CNC applications, this turning blank also includes a hole diameter of 0.170 to 0.176 inches and counterbore dimensions of 0.233 to 0.239 inches. Grade availability is customizable upon request, making it suitable for a wide range of industrial turning operations.

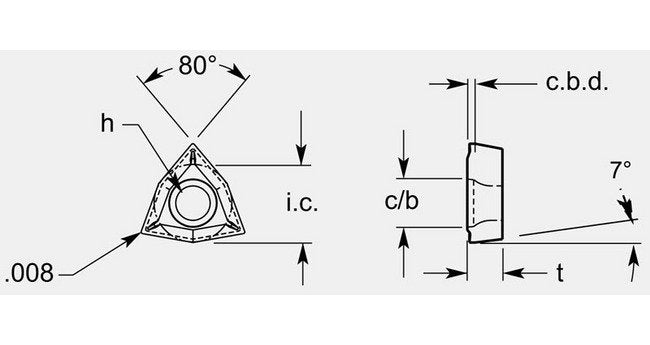

Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.233 / 0.239 in
Dimensional Specification Cbd
0.029 / 0.035 in
Dimensional Specification Design For Rad
1
Dimensional Specification Hole
0.170 / 0.176 in
Dimensional Specification Inscribed Circle Ic
0.387/0.393 in
Dimensional Specification Thickness T
0.173 / 0.179 in
Grade Availability Grade Availability
Available on Request
