Trigon Positive Hole Counterbore Turning Blank, Thickness 0.202/0.206 in
Trigon Positive Hole Counterbore Turning Blank, Thickness 0.202/0.206 in
SKU:TUR-37c9f6
Precision Trigon Turning Blank for industrial machining applications. Thickness 0.202/0.206 in, Angle 84°, customizable Grade Availability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Positive Hole Counterbore Turning Blank, Thickness 0.202/0.206 in
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Positive Hole Counterbore Turning Blank, Thickness 0.202/0.206 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

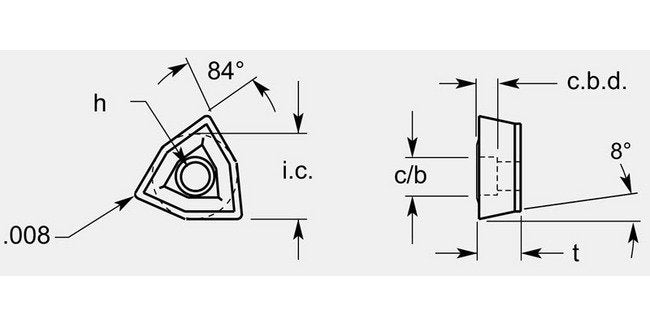

The Trigon Positive with Hole and Counterbore Turning Blank boasts a precise thickness of 0.202/0.206 in, an Inscribed Circle of 0.486/0.492 in, and an Angle of 84°. With hole dimensions of 0.193/0.199 in and CB/CBD measurements of 0.257/0.263 in and 0.069/0.077 in respectively, this blank ensures accuracy and efficiency in machining. Grade Availability is customizable to meet specific requirements, making it an ideal choice for industrial applications.
Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.257 / 0.263 in
Dimensional Specification Cbd
0.069 / 0.077 in
Dimensional Specification Hole
0.193 / 0.199 in
Dimensional Specification Inscribed Circle Ic
0.486/0.492 in
Dimensional Specification Thickness T
0.202 / 0.206 in
Grade Availability Grade Availability
Available on Request
