Trigon Positive Turning Blank with Hole and Counterbore, 0.163-0.167 in
Trigon Positive Turning Blank with Hole and Counterbore, 0.163-0.167 in
SKU:TUR-657971
Precision Trigon Positive Turning Blank for turning operations, 0.163-0.167 in. Grades available upon request.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Trigon Positive Turning Blank with Hole and Counterbore, 0.163-0.167 in
$39.99
Quantity: 1
Claim Your Seller Account
Trigon Positive Turning Blank with Hole and Counterbore, 0.163-0.167 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Positive Turning Blank with Hole and Counterbore, featuring a thickness of 0.163-0.167 inches, is a precision-engineered product designed to meet the demanding requirements of turning operations. With an Inscribed Circle of 0.605-0.611 inches, an Angle of 84 degrees, and precise hole and counterbore dimensions, this blank ensures optimal performance and dimensional accuracy. Grades are available upon request, catering to diverse machining needs while adhering to strict quality standards.

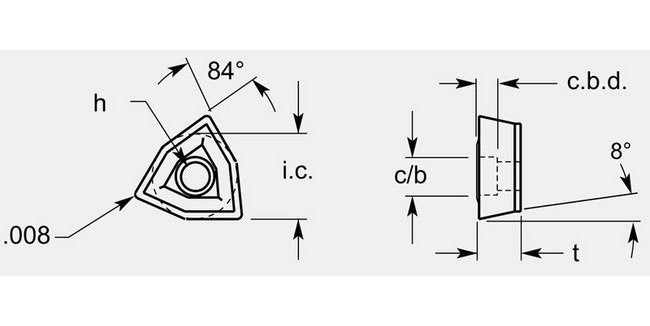

Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.257 / 0.263 in
Dimensional Specification Cbd
0.070 / 0.076 in
Dimensional Specification Hole
0.193 / 0.199 in
Dimensional Specification Inscribed Circle Ic
0.605/0.611 in
Dimensional Specification Thickness T
0.163 / 0.167 in
Grade Availability Grade Availability
Available on Request
