Trigon Positive Turning Blank with Hole and Counterbore, 0.173/0.179 in
Trigon Positive Turning Blank with Hole and Counterbore, 0.173/0.179 in
SKU:TUR-edae1e
Precision Trigon Positive Turning Blank with Hole and Counterbore, ideal for diverse turning needs.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Positive Turning Blank with Hole and Counterbore, 0.173/0.179 in
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Positive Turning Blank with Hole and Counterbore, 0.173/0.179 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

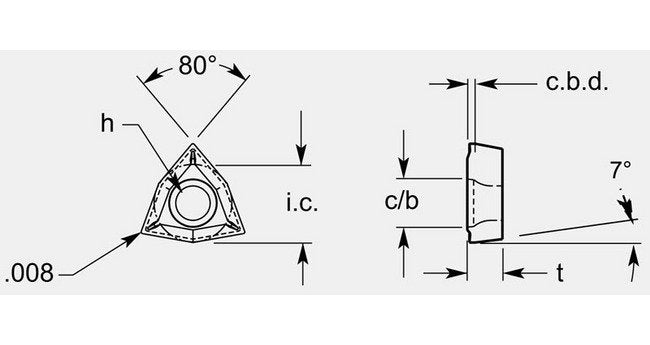

The Trigon Positive Turning Blank with Hole and Counterbore offers precise dimensions of 0.173/0.179 in thickness, designed with an inscribed circle of 0.387/0.393 in and an 80° angle. Featuring a hole diameter of 0.170/0.176 in and a CB dimension of 0.233/0.239 in, this turning blank is crafted for radii of (1) or smaller. Grade availability is customizable upon request, ensuring suitability for various turning applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.233 / 0.239 in
Dimensional Specification Cbd
0.029 / 0.035 in
Dimensional Specification Design For Rad
(1) or smaller
Dimensional Specification Hole
0.170 / 0.176 in
Dimensional Specification Inscribed Circle Ic
0.387/0.393 in
Dimensional Specification Thickness T
0.173 / 0.179 in
Grade Availability Grade Availability
Available on Request
