Trigon Positive Turning Blank with Hole and Counterbore, 0.202 / 0.206 in Thickness
Trigon Positive Turning Blank with Hole and Counterbore, 0.202 / 0.206 in Thickness
SKU:TUR-6ec10b
Precision Trigon Positive Turning Blank, 0.202 / 0.206 in Thickness, Grade Options Available
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Trigon Positive Turning Blank with Hole and Counterbore, 0.202 / 0.206 in Thickness
$39.99
Quantity: 1
Claim Your Seller Account
Trigon Positive Turning Blank with Hole and Counterbore, 0.202 / 0.206 in Thickness
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

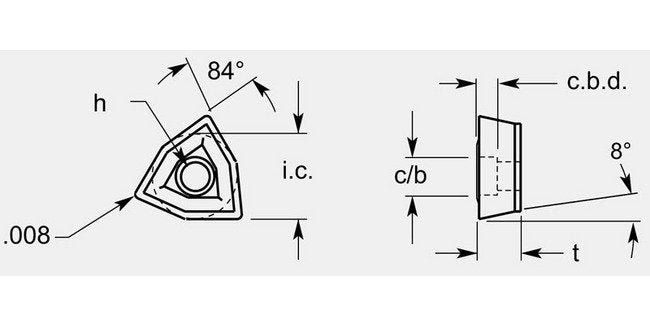

The Trigon Positive Turning Blank with Hole and Counterbore features precise dimensional specifications including a thickness of 0.202 / 0.206 inches, inscribed circle of 0.605 / 0.611 inches, an angle of 84 degrees, and hole sizes of 0.193 / 0.199 inches. This blank is designed to meet the rigorous requirements of institutional and government procurement standards, ensuring high quality and performance. Available grade options can be requested to suit specific applications.
Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.257 / 0.263 in
Dimensional Specification Cbd
0.070 / 0.076 in
Dimensional Specification Hole
0.193 / 0.199 in
Dimensional Specification Inscribed Circle Ic
0.605/0.611 in
Dimensional Specification Thickness T
0.202 / 0.206 in
Grade Availability Grade Availability
Available on Request
