Trigon Positive Turning Blank with Hole and Counterbore, Thickness 0.173/0.179 in
Trigon Positive Turning Blank with Hole and Counterbore, Thickness 0.173/0.179 in
SKU:TUR-da91d8
Premium Trigon Positive Turning Blank for precise machining. Custom grade options available upon request.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Trigon Positive Turning Blank with Hole and Counterbore, Thickness 0.173/0.179 in
$24.99
Quantity: 1
Claim Your Seller Account
Trigon Positive Turning Blank with Hole and Counterbore, Thickness 0.173/0.179 in
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Trigon Positive Turning Blank is expertly crafted with a precise thickness of 0.173 to 0.179 inches, an Inscribed Circle diameter of 0.387 to 0.393 inches, and an optimal design for machining. With a durable hole and counterbore dimension of 0.170 to 0.176 inches and CB of 0.233 to 0.239 inches, this blank ensures high-performance and accuracy in turning applications. Grade Availability is customizable upon request to meet specific institutional requirements.
Ready to Grow Without Cash Flow Constraints?

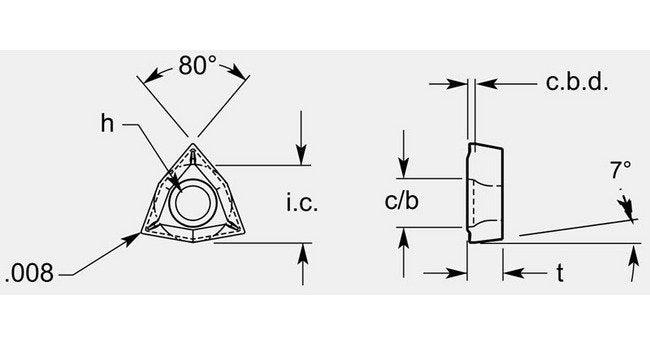

Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Cb
0.233 / 0.239 in
Dimensional Specification Cbd
0.029 / 0.035 in
Dimensional Specification Design For Rad
2
Dimensional Specification Hole
0.170 / 0.176 in
Dimensional Specification Inscribed Circle Ic
0.387/0.393 in
Dimensional Specification Thickness T
0.173 / 0.179 in
Grade Availability Grade Availability
Available on Request
