Trigon Positive Turning Blank with Hole & Counterbore, Thickness 0.202/0.206 in
Trigon Positive Turning Blank with Hole & Counterbore, Thickness 0.202/0.206 in
SKU:TUR-6a6c9c
Achieve precision turning with the Trigon Positive Blank, Thickness 0.202/0.206 in. Ideal for diverse projects.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Trigon Positive Turning Blank with Hole & Counterbore, Thickness 0.202/0.206 in
$29.99
Quantity: 1
Claim Your Seller Account
Trigon Positive Turning Blank with Hole & Counterbore, Thickness 0.202/0.206 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

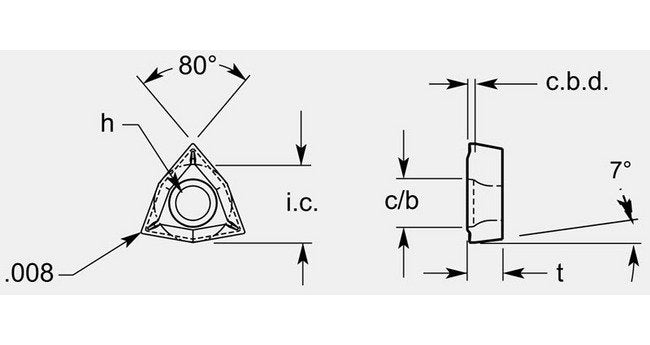

Enhance your turning projects with the Trigon Positive Turning Blank featuring precise dimensional specifications: Thickness 0.202/0.206 in, Inscribed Circle 0.486/0.492 in, Angle 84°, Hole 0.193/0.199 in, CB 0.257/0.263 in, and CBD 0.069/0.077 in. This blank is meticulously crafted to meet stringent standards, promising exceptional results in turning applications.
Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.257 / 0.263 in
Dimensional Specification Cbd
0.069 / 0.077 in
Dimensional Specification Hole
0.193 / 0.199 in
Dimensional Specification Inscribed Circle Ic
0.486/0.492 in
Dimensional Specification Thickness T
0.202 / 0.206 in
Grade Availability Grade Availability
Available on Request
