Trigon Positive with Hole and Counterbore - 0.163/0.167 in
Trigon Positive with Hole and Counterbore - 0.163/0.167 in
SKU:TUR-246095
High-precision Trigon Positive turning blank with hole and counterbore, 0.163/0.167 in thickness. Custom grades available on request.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Trigon Positive with Hole and Counterbore - 0.163/0.167 in
$39.99
Quantity: 1
Claim Your Seller Account
Trigon Positive with Hole and Counterbore - 0.163/0.167 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

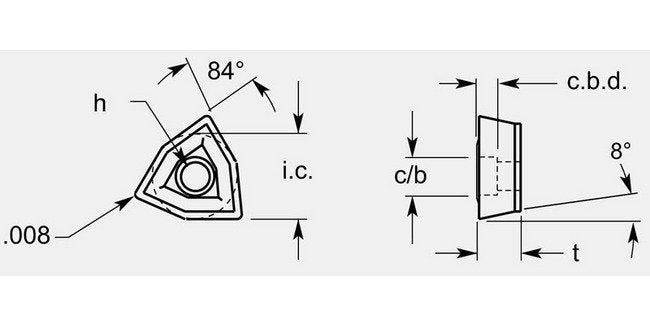

The Trigon Positive with Hole and Counterbore boasts a precise thickness of 0.163/0.167 inches, an Inscribed Circle of 0.486/0.492 inches, and an 84º cutting Angle. With a hole diameter of 0.193/0.199 inches and a Counterbore diameter ranging from 0.257 to 0.263 inches, this turning blank offers exceptional accuracy and consistency for industrial machining applications. Grade Availability is customizable upon request, ensuring compliance with stringent institutional procurement standards.
Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.257 / 0.263 in
Dimensional Specification Cbd
0.069 / 0.077 in
Dimensional Specification Hole
0.193 / 0.199 in
Dimensional Specification Inscribed Circle Ic
0.486/0.492 in
Dimensional Specification Thickness T
0.163 / 0.167 in
Grade Availability Grade Availability
Available on Request
