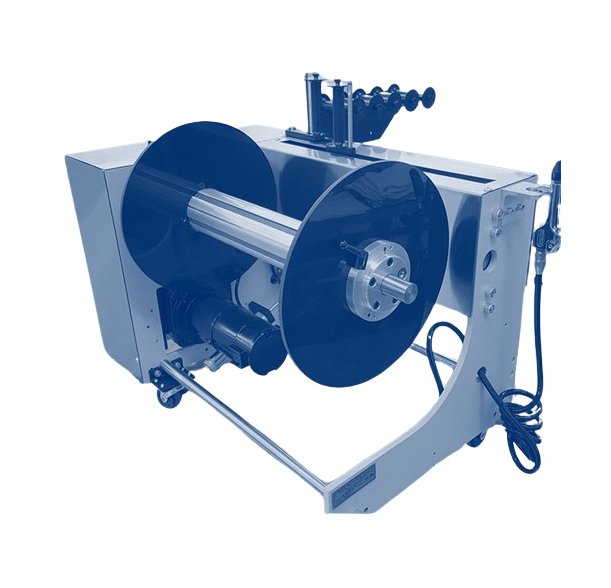

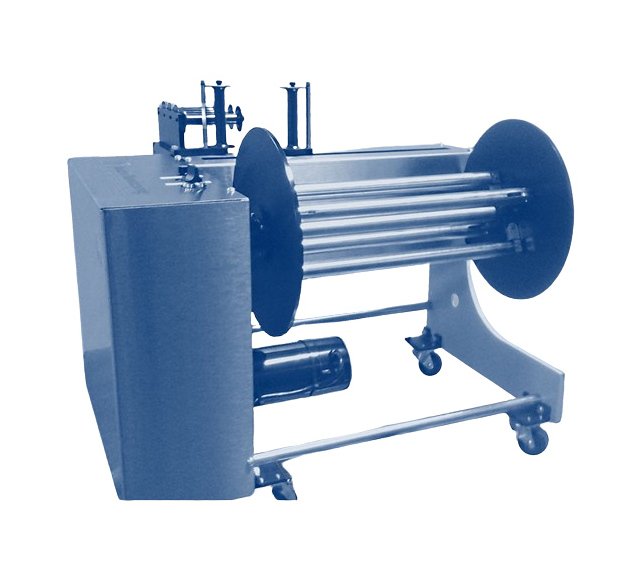

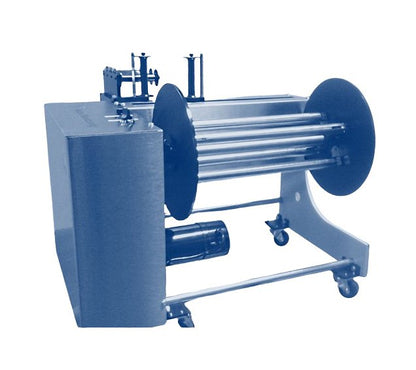

Trim Rewinders
Trim Rewinders
SKU:TRI-a51c89
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Trim Rewinders
$49.99
Quantity: 1
Claim Your Seller Account
Trim Rewinders
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

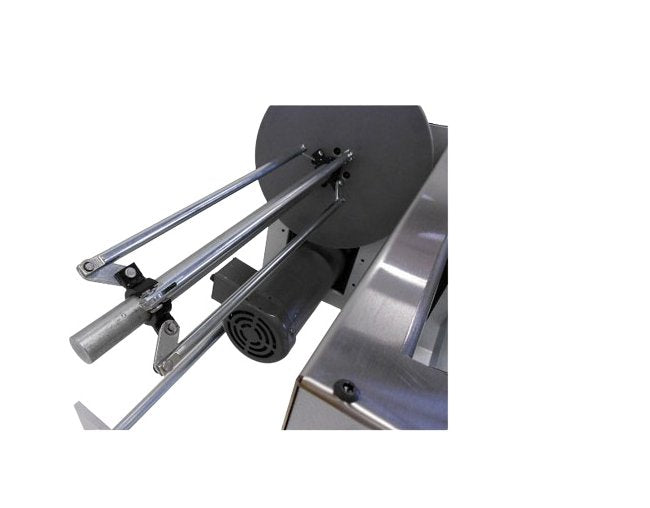

Our Trim Rewinders are a simple and sturdy, design that work with almost any converting line.Each Trim Rewinder includes a "built-in” dancer for intermittent motion systems. Tension adjustments for rewinder can be easily and quickly performed.Our design also includes traverse wind that allows high linear footage on the rewinder.We even make unloading easy with a standard collapsible coreless shaft.
Product Specifications
Technical Specs Alternative Current Ac Voltage
110 V | 220 V
Technical Specs Current At 110 Volt V Alternative Current Ac Vol
8 A
Technical Specs Current At 220 Volt V Alternative Current Ac Vol
4 A
Technical Specs Machine Dimensions
28 in. (711 mm)/28 in. (711 mm)/28 in. (711 mm)
Technical Specs Machine Speed
200 ft/min
Technical Specs Maximum Trim Width
3 in | 76 mm
Technical Specs Wind Diameter
16 in | 406 mm
Technical Specs Wind Width
15 in | 381 mm
