Trim-to-Length Stainless Steel Control Head Cable

Name: Trim-to-Length Stainless Steel Control Head Cable
Brand: Lexco Cable Manufacturing
SKU: PUS-cf1edc
Price: 34.99 USD
Availability: OutOfStock

SKU:PUS-cf1edc

Premium stainless steel control head cable for precise and reliable control in various applications.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

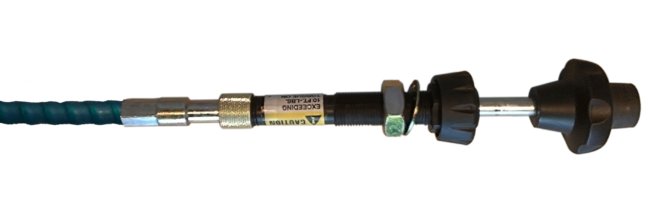

The Trim-to-Length Stainless Steel Control Head Cable is a top-of-the-line solution for precise control applications. Featuring a factory-assembled design with a stainless steel solid wire innermember, this cable offers up to 3" travel, a 5" minimum bend radius, and a remarkable 20 lb pull load rating. With options for Micro Adjust control head type and low friction conduit, this cable ensures smooth and accurate operations. The diverse output end fittings provide flexibility and durability in various setups. Ideal for applications requiring reliability and fine control.

Product Specifications

Specifications Cable Travel

1 " | 2 " | 3 "

Specifications Conduit Size

Very Light Duty

Specifications Conduit Type

Low Friction-EXT

Specifications Control Head Type

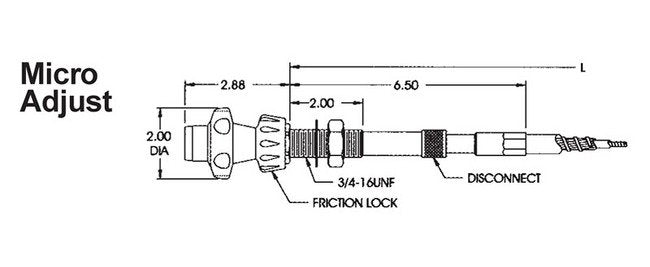

Micro Adjust

Specifications Micro Adjust Only Cable Options

D - Disconnect Feature | F - Friction Lock Accessory

Specifications Output End Fittings

2 - Threaded Twist On | 3 - Grooved Twist On | 4 - Threaded Swaged | 5 - Grooved Swaged | 6 - Closed End Swaged

Specifications Seal Options

5 - Improved Model 5 Wiper Seal is Standard on Low Friction - EXT & Utility | 6 - Model 6 Wiper Seal, Optional on All Controls

Specifications Stainless Steel Options

Carbon Steel Fittings

CAGE

0T9L4

NAICS

332510

PSC

4030

Trim-to-Length Stainless Steel Control Head Cable
