Triple-Link Hinge Shaft Collar 32L103H

Name: Triple-Link Hinge Shaft Collar 32L103H
Brand: Stafford Manufacturing Corp.
SKU: ROU-c449c4
Price: 29.99 USD
Availability: OutOfStock

SKU:ROU-c449c4

Innovative Triple-Link Hinge Shaft Collar for fast, damage-free assembly/disassembly in hostile environments. RoHS2 and REACH compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

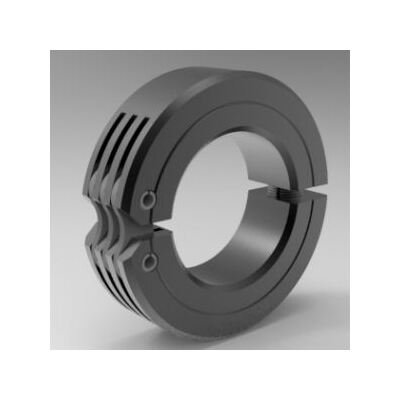

The Triple-Link Hinge Shaft Collar 32L103H offers a unique design with a triple-link hinge and captive screw for quick assembly and disassembly. Ideal for fast operation in hostile environments, it combines the flexibility of a two-piece collar with the simplicity of a one-piece. Constructed from RoHS2 and REACH compliant steel with a smooth bore, it provides secure axial holding power without damaging shafts.

Product Specifications

Dimensional Attributes Bore Size

1-3/16 in

Dimensional Attributes Outside Diameter

2.063 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Width

0.500 in

Specifications Alloy

A283grC

Specifications Approximate Weight

0.28 lb

Specifications Country Of Origin

China

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

32L103H

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Standard

Specifications Type

Economy

Specifications Upc Code

662786034541

Triple-Link Hinge Shaft Collar 32L103H
