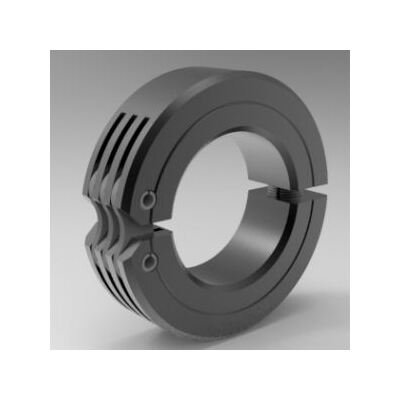

Triple-Link Hinge Shaft Collar
Triple-Link Hinge Shaft Collar
SKU:ROU-cbfd7d
Innovative Triple-Link design for quick assembly in tight spaces. Reliable axial holding power and smooth bore for shaft protection.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Triple-Link Hinge Shaft Collar
$24.99
Quantity: 1
Claim Your Seller Account
Triple-Link Hinge Shaft Collar
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triple-Link Hinge Shaft Collar by Stafford combines the flexibility of a two-piece collar with the simplicity of a one-piece design. Ideal for fast operations in hostile environments or constrained spaces, it offers easy assembly and repositioning without the hassle of loose screws. With a smooth bore that protects shafts from damage, this collar provides reliable axial holding power. Stocked in steel and stainless steel, the Triple-Link Hinge Shaft Collar is a superior choice for standard round shafts and thin wall tubes.
Product Specifications
Dimensional Attributes Bore Size
1-1/4 in
Dimensional Attributes Outside Diameter
2.063 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.500 in
Specifications Alloy
A283grC
Specifications Approximate Weight
0.25 lb
Specifications Country Of Origin
China
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
32L104H
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Standard
Specifications Type
Economy
Specifications Upc Code
662786034558
