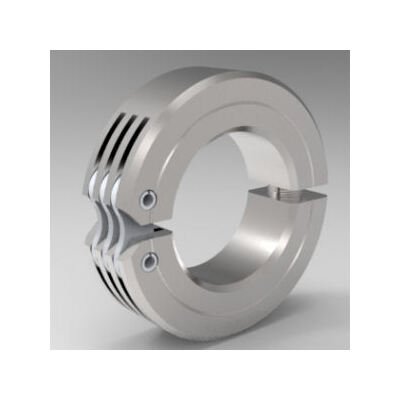

Triple-Link Hinge Shaft Collar

Name: Triple-Link Hinge Shaft Collar
Brand: Stafford Manufacturing Corp.
SKU: ROU-e1c861
Price: 28.99 USD
Availability: OutOfStock

SKU:ROU-e1c861

Streamline shaft collar assembly with the innovative Triple-Link Hinge Shaft Collar by Stafford.

$28.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Triple-Link Hinge Shaft Collar by Stafford is a versatile and innovative solution for fast shaft collar assembly. Featuring a unique design with a triple-link hinge and captive screw in one unit, this collar combines the flexibility of a two-piece collar with the simplicity of a one-piece. Perfect for high-demand environments, this collar offers quick operation, smooth bore protection for shafts, and easy assembly, repositioning, and disassembly, eliminating the hassle of lost screws and wasted time. Available in steel and stainless steel, this collar provides excellent axial holding power and is compatible with standard round shafts, hard or soft, as well as thin wall tube or split hub applications.

Product Specifications

Dimensional Attributes Bore Size

3/4 in

Dimensional Attributes Outside Diameter

1.500 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Width

0.500 in

Specifications Alloy

304

Specifications Approximate Weight

0.16 lb

Specifications Country Of Origin

China

Specifications Finish

Matte

Specifications Material

Stainless Steel

Specifications Part Number

32S012H

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Standard

Specifications Type

Economy

Specifications Upc Code

662786034657

Triple-Link Hinge Shaft Collar
