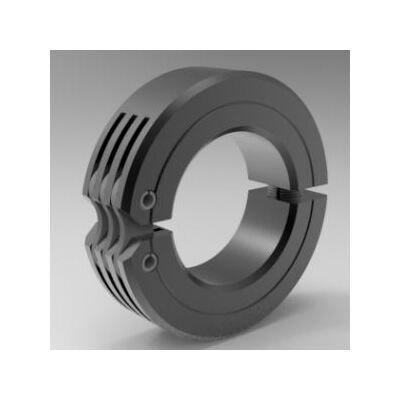

Triple-Link Hinge Shaft Collars
Triple-Link Hinge Shaft Collars
SKU:ROU-056614
Stafford's Triple-Link Hinge Shaft Collars: Flexibility and simplicity in one unit for efficient and secure shaft management.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Triple-Link Hinge Shaft Collars
$12.99
Quantity: 1
Claim Your Seller Account
Triple-Link Hinge Shaft Collars
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triple-Link Hinge Shaft Collars from Stafford offer a unique combination of flexibility and simplicity, featuring a triple-link hinge and captive screw in one unit. Designed for fast operation in hostile environments, these collars are stocked in steel and stainless steel, providing the same axial holding power as conventional collars. With a smooth bore to protect shafts from damage, these collars are easy to assemble, reposition, and disassemble swiftly, enhancing efficiency and eliminating lost screws. Perfect for applications with space and time constraints on standard round shafts, hard or soft, or thin wall tubes, the Triple-Link Hinge Shaft Collars ensure secure and hassle-free shaft management.
Product Specifications
Dimensional Attributes Bore Size
1/2 in
Dimensional Attributes Outside Diameter
1.125 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
8-32 x 1/2
Dimensional Attributes Width
0.406 in
Specifications Alloy
A283grC
Specifications Approximate Weight
0.08 lb
Specifications Country Of Origin
China
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
32L008H
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Standard
Specifications Type
Economy
Specifications Upc Code
662786034480
