Triple-Link Hinge Shaft Collars
Triple-Link Hinge Shaft Collars
SKU:ROU-2bb453
Enhance assembly efficiency and security with our Triple-Link Hinge Shaft Collars. Perfect for fast operations in demanding environments. Available in steel and stainless steel.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Triple-Link Hinge Shaft Collars
$29.99
Quantity: 1
Claim Your Seller Account
Triple-Link Hinge Shaft Collars
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

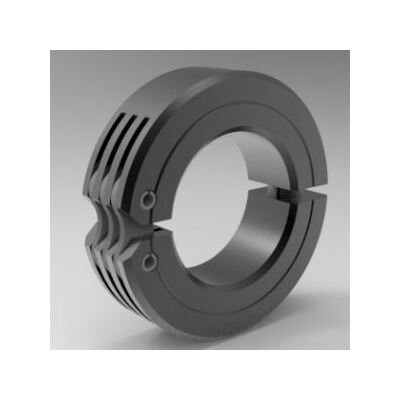

The Triple-Link Hinge Shaft Collars from Stafford offer unparalleled flexibility and efficiency in assembly. Designed with a triple-link hinge and captive screw, these collars combine the convenience of one-piece with the adaptability of two-piece collars. Ideal for fast operations in challenging environments, they fit standard round shafts or thin wall tubes effortlessly. With a smooth bore that safeguards shafts from damage, these collars ensure secure axial holding power while eliminating the hassle of lost screws. Available in steel and stainless steel variants, the Triple-Link Hinge Shaft Collars set a new standard in ease of use and reliability.
Product Specifications
Dimensional Attributes Bore Size
1-3/8 in
Dimensional Attributes Outside Diameter
2.250 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.563 in
Specifications Alloy
A283grC
Specifications Approximate Weight
0.35 lb
Specifications Country Of Origin
China
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
32L106H
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Standard
Specifications Type
Economy
Specifications Upc Code
662786034565
