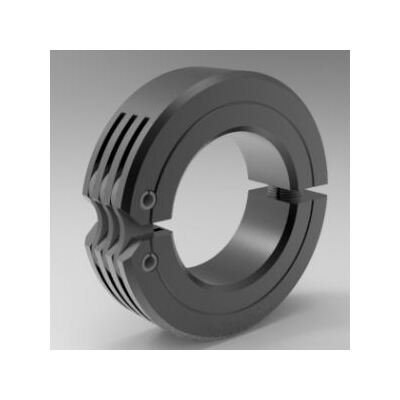

Triple-Link Hinge Shaft Collars
Triple-Link Hinge Shaft Collars
SKU:ROU-4a1953
Experience unmatched flexibility & simplicity with Stafford's Triple-Link Hinge Shaft Collars. Easy assembly, secure holding power, & smooth bore protection.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Triple-Link Hinge Shaft Collars
$24.99
Quantity: 1
Claim Your Seller Account
Triple-Link Hinge Shaft Collars
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triple-Link Hinge Shaft Collars by Stafford offer unparalleled flexibility and simplicity in assembly. Featuring a unique design with a triple-link hinge and captive screw, these collars combine the ease of a one-piece unit with the versatility of a two-piece collar. Perfect for fast operation in challenging environments, they provide secure axial holding power while protecting shafts with their smooth bore. Ideal for standard round shafts, hard or soft, thin wall tubes, or split hubs, these collars are easy to assemble, reposition, and disassemble, eliminating the frustrations of lost screws and wasted time.
Product Specifications
Dimensional Attributes Bore Size
1 in
Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.500 in
Specifications Alloy
A283grC
Specifications Approximate Weight
0.2 lb
Specifications Country Of Origin
China
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
32L100H
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Standard
Specifications Type
Economy
Specifications Upc Code
662786034527
