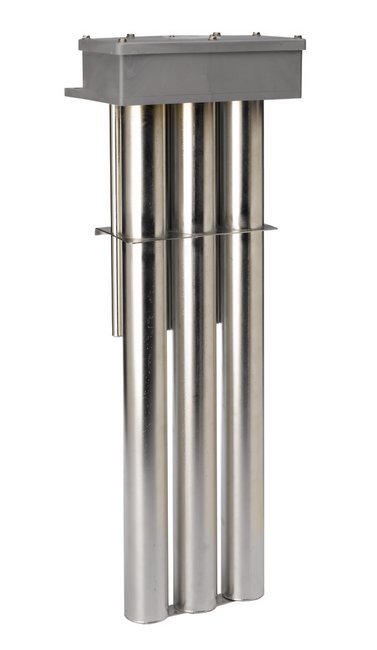

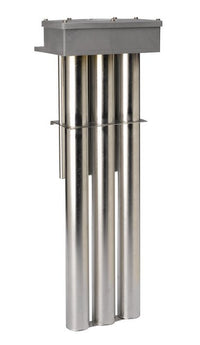

Triple Metal Heater D3 Series - 4500W, 480V, 304 Stainless Steel
Triple Metal Heater D3 Series - 4500W, 480V, 304 Stainless Steel
SKU:HEA-af3e8b
D3 Series Derated Triple Metal Heaters: Superior chemical resistance, exceptional performance, cUL Listed, ideal for institutional procurement.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Triple Metal Heater D3 Series - 4500W, 480V, 304 Stainless Steel
$599.99
Quantity: 1
Claim Your Seller Account
Triple Metal Heater D3 Series - 4500W, 480V, 304 Stainless Steel
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The D3 Series Derated Triple Metal Heaters offer exceptional durability with 304 Stainless Steel construction, designed for superior chemical resistance in alkaline solutions and tanks. Featuring watt densities up to 35 watts per square inch, these heaters ensure outstanding performance and longevity. With certifications including cUL US Listed, these heaters come with safety features like thermal protectors and corrosion-resistant heads, making them ideal for institutional and government procurement needs.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE:For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:Steel.304 stainless steel.316 stainless steel.Titanium.OUTSTANDING PERFORMANCE:Watt densities up to 35 watts per square inch (5.4 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protectors built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 1,500 watts to 18,000 watts.VOLTAGES:120 to 600 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C)P5:for solutions up to 300°F (149°C)Resettable thermal protectors:P2: for solutions up to 180°F (82°C)P6: for solutions up to 230°F (110°C)P7: for solutions up to 300°F (149°C)Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Specifications Certifications
cUL US Listed
Specifications Hot Zone
16 " | 406 mm
Specifications Manufacturer
Process Technology
Specifications Material
304 Stainless Steel
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Overall Length
23 " | 584 mm
Specifications Phase
Single | Three
Specifications Shipping Weight
33.0 Pound
Specifications Volts
480 V
Specifications Watts
4500 W
Specifications Weight
33.0 lbs | 15.0 kg
