Triple Metal Heaters - 3P, 3F, 3S, 3T Series
Triple Metal Heaters - 3P, 3F, 3S, 3T Series
SKU:HEA-7aaf35
Powerful Triple Metal Heaters with 316 Stainless Steel construction, thermal protection options, and cUL US Listed certification.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Triple Metal Heaters - 3P, 3F, 3S, 3T Series
$599.99
Quantity: 1
Claim Your Seller Account
Triple Metal Heaters - 3P, 3F, 3S, 3T Series
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triple Metal Heaters in the 3P, 3F, 3S, and 3T Series are designed with high-quality 316 Stainless Steel construction, offering 24,000 W power at 480 V. With a hot zone of 37" and overall length of 47", these heaters are suitable for various industrial applications. Featuring thermal overload protection options and cUL US Listed certification, they ensure superior chemical resistance, rugged construction, outstanding performance, and safety features like a corrosion-resistant head and grounded construction.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE:For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chartwith your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:Steel.304 stainless steel.316 stainless steel.Titanium.OUTSTANDING PERFORMANCE: Watt densities up to 35 watts per square inch (5.4 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) andCE compliant (except 600 volts).SIZES: 3,000 watts to 36,000 watts.VOLTAGES:200 to 600 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C)P5: for solutions up to 300°F (149°C).Resettable thermal protectors:P2: for solutions up to 180°F (82°C).P6: for solutions up to 230°F (110°C)P7: for solutions up to 300°F (149°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Specifications Certifications
cUL US Listed

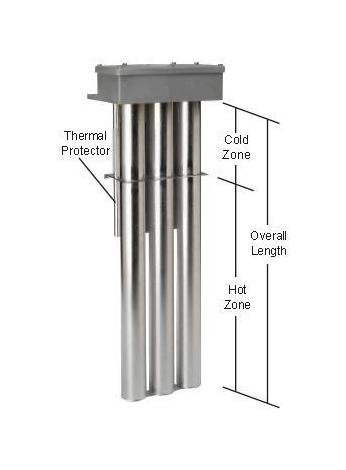

Specifications Hot Zone
37 " | 940 mm
Specifications Manufacturer
Process Technology
Specifications Material
316 Stainless Steel
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Overall Length
47 " | 1194 mm
Specifications Phase
Single | Three
Specifications Volts
480 V
Specifications Watts
24,000 W
Specifications Weight
63.0 lbs | 28.6 kg
