Triple Output PC Mount Power Transformer
Triple Output PC Mount Power Transformer
SKU:POW-22d04b
Versatile Triple Output PC Mount Power Transformer for power supply designs. Single/dual primary, dual center-tapped secondary configurations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Triple Output PC Mount Power Transformer
$29.99
Quantity: 1
Claim Your Seller Account
Triple Output PC Mount Power Transformer
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

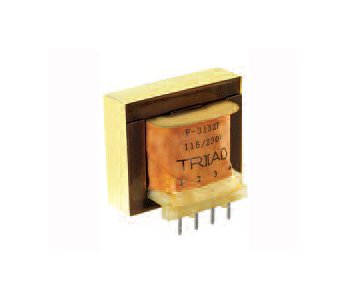

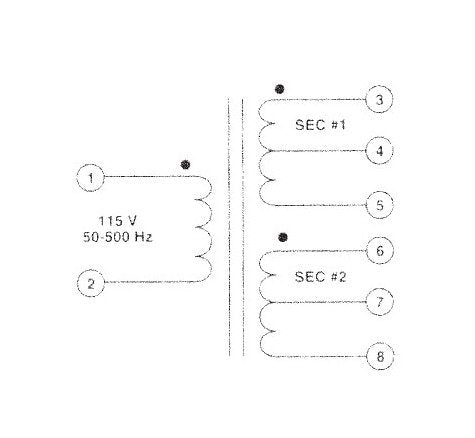

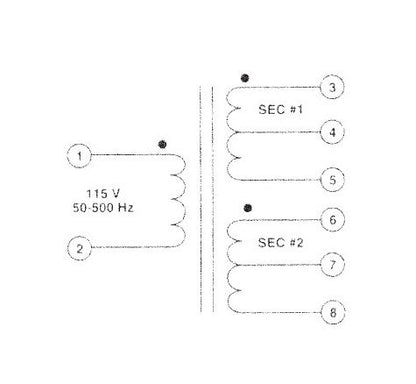

The Triple Output PC Mount Power Transformer from our PC Mount Power Transformers line is designed to meet the stringent needs of PC board and solid-state power supply designs. This transformer offers triple output capabilities, featuring single or dual primary configurations and dual center-tapped secondary configurations. With an electrical rating of 1 1/2 V·A, primary voltage of 115 V, and secondary voltages of 24.0 V CT at 0.025 A and 9.0 V at 0.100 A, this transformer is ideal for various power, control, and instrumentation applications. Additionally, it undergoes hi-pot testing at 1,500 VRMS for reliable performance.
Product Specifications

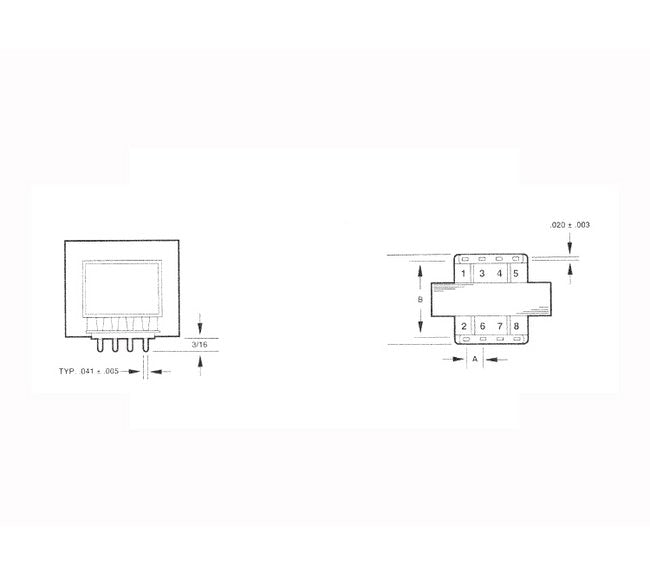

Specifications Depth D
1 5/32 in
Specifications Dimension A
13/64 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Length L
1 25/64 in
Specifications Mounting Hole Size
3/16 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
9.0 V at 0.100 A
Specifications Secondary Voltage In Series
24.0 V CT at 0.025 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
3.5 oz
Specifications Width W
1 25/64 in
