Triple Output PC Mount Power Transformer
Triple Output PC Mount Power Transformer
SKU:POW-2ce23d
Versatile Triple Output PC Mount Power Transformer for efficient power supply designs.
Regular price
$54.99
Regular price
Sale price
$54.99
Unit price
per
Initiate Order
Triple Output PC Mount Power Transformer
$54.99
Quantity: 1
Claim Your Seller Account
Triple Output PC Mount Power Transformer
$54.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Triple Output PC Mount Power Transformer from our PC Mount Power Transformers line offers a versatile solution for PC board and solid-state power supply designs. With single or dual primary and dual center-tapped secondary configurations, this transformer is ideal for power, control, and instrumentation applications. Featuring a Hi-pot test at 1,500 VRMS, this transformer ensures reliable performance and safety.
Ready to Grow Without Cash Flow Constraints?

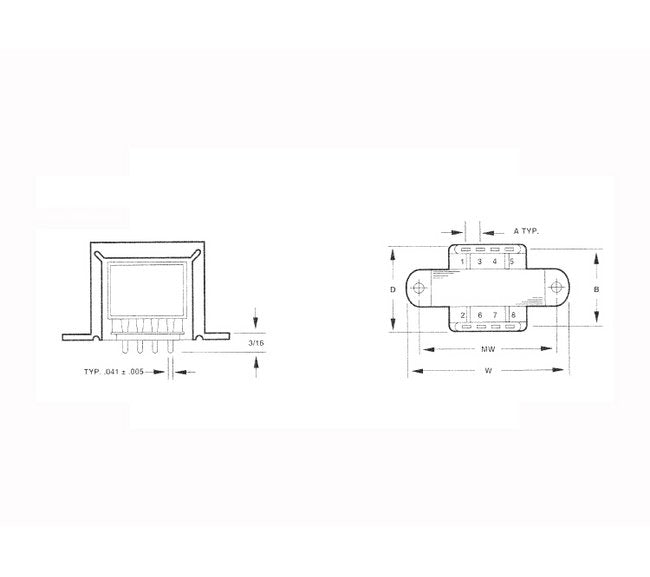

Product Specifications
Specifications Depth D
1 1/4 in
Specifications Dimension A
1/4 in
Specifications Dimension B
1 3/32 in
Specifications Electrical Rating
4 1/2 V·A
Specifications Height H
1 7/16 in
Specifications Length L
1 45/64 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
15.0 V at 0.195 A
Specifications Secondary Voltage In Series
32.0 V CT at 0.050 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
7.5 oz
Specifications Width W
2 3/8 in
