TROGLOTREK Robotic Sewer Crawler System
TROGLOTREK Robotic Sewer Crawler System
SKU:PIP-616e19
Cutting-edge Robotic Sewer Crawler System for precise pipeline inspections. IP68 waterproof, Pan/Tilt Camera, Lithium-Ion batteries.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
TROGLOTREK Robotic Sewer Crawler System
$5,499.99
Quantity: 1
Claim Your Seller Account
TROGLOTREK Robotic Sewer Crawler System
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

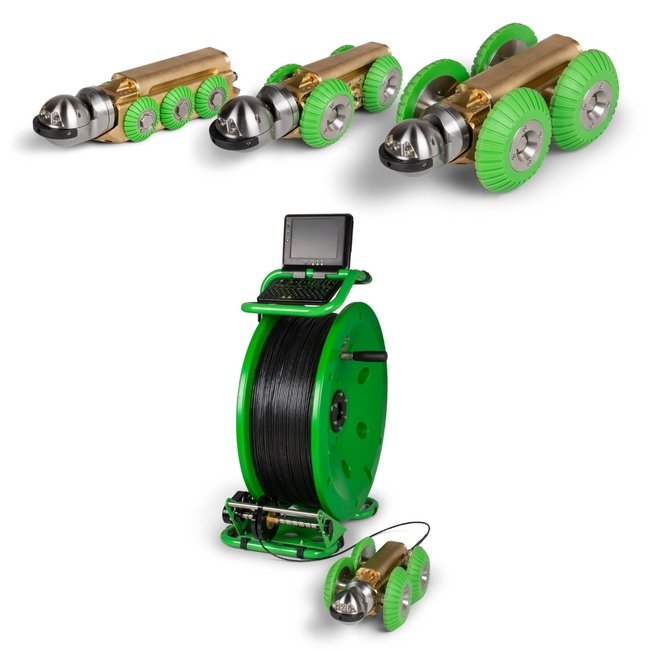

The TROGLOTREK Robotic Sewer Crawler System is a cutting-edge solution for inspecting pipelines, culverts, mine shafts, and water mains with precision and efficiency. Built with top-tier brass and stainless steel materials, this crawler boasts a fully waterproof design meeting IP68 standards, ensuring optimal performance even in challenging outdoor conditions. Equipped with a high-resolution Pan and Tilt Camera Head and a Straight View Camera Head, both featuring advanced CMOS chips and powerful LEDs, this system offers superior image quality and clarity. Its Lithium-Ion rechargeable batteries provide portability and autonomy, eliminating the need for external power sources. With a cable length of up to 300m, inclinometer, auto-steering, and optional Wifi Direct Transfer, the TROGLOTREK Robotic Sewer Crawler System delivers unmatched functionality for thorough inspections.
Product Specifications
Additional Information
The TROGLOTREK Robotic Sewer Crawler, a quality European-built unit, is one of the only crawler systems capable of inspecting straight 4"(100mm) pipes. This unit combines modern technology to make it portable and lightweight; it can be easily carried to the job site and used without generators or outside power due to its strong Lithium-Ion rechargeable batteries. With a waterproof level of IP68 for the crawler and IP67 for the reel, this configuration excellently suits wet outdoor applications. A 5.6" high-brightness color display is attached to the reel and features a sun shield, controls for the crawler, keyboard, on-screen counter, and a pressure sensor. The 4mm Kevlar cable, with a Vectran strength line, transmits only 5V and three conductor wires, making it efficient, light, and safe to use. Pipes up to 39"(1m) can be inspected without any attachments; additional LEDs and wheels can be mounted for inspecting pipes larger than 39" (1m). The crawler robot, machined from robust solid brass and stainless steel, has brushless motors that provide high torque even at low speeds. A backup camera and LEDs allow quick and easy retraction from the inspection site. Two camera options can be used with this crawler unit, a Pan and Tilt or a Straight View Camera Head. The Pan and Tilt Head has 360° tilt and 285° usable side panning with a manual focus range of 20mm - ∞. The Straight View has a focus range of 100mm - ∞. These camera heads have sensitive CMOS chips with digital clarity enhancements and powerful LEDs that raise the image quality and capability of this unit. A unique magnetic lowering and lifting device allows the crawler to be lifted up or lowered down to hard-to-reach places for inspecting manholes, drainages, pipelines, and mine shafts. The TROGLOTREK Robotic Sewer Crawler is a perfect solution to difficult inspection situations that demand portability and performance.
Applications
Mine ShaftsPipeline InspectionsCulvert InspectionsRoad Work and ManholesDrainage SurveysWater Mains Inspections
Features
Up to 300 m (984 ft) CableInclinometer and Auto-SteeringOptional Wifi Direct TransferFully Brass and Stainless Steel Crawler Body Completely Waterproof SystemPan and Tilt with Auto-Home Portable Battery-Operated SystemManual Focus Pan and Tilt Camera
Technical Specs Battery Operated
Yes
Technical Specs Brands
Fiberscope.net by MEDIT
Technical Specs Camera Types
Pan and Tilt | Straight View
Technical Specs Footage Counter
Yes
Technical Specs Imagevideo Capture
Yes
Technical Specs Interchangeable Heads
Yes
Technical Specs Length
300 m | 984 ft
Technical Specs Monitor Size
5.6 in
Technical Specs Monitor Type
High-Brightness Liquid Crystal Display (HB LCD)
Technical Specs Note
Available for Rent
Technical Specs Pan And Tilt Head Diameter
60 mm | 2.36 in
Technical Specs Straight View Head Diameter
48.6 mm | 1.9 in
Technical Specs Text Generator
Yes
Technical Specs Waterproof
Ingress Protection (IP68)
