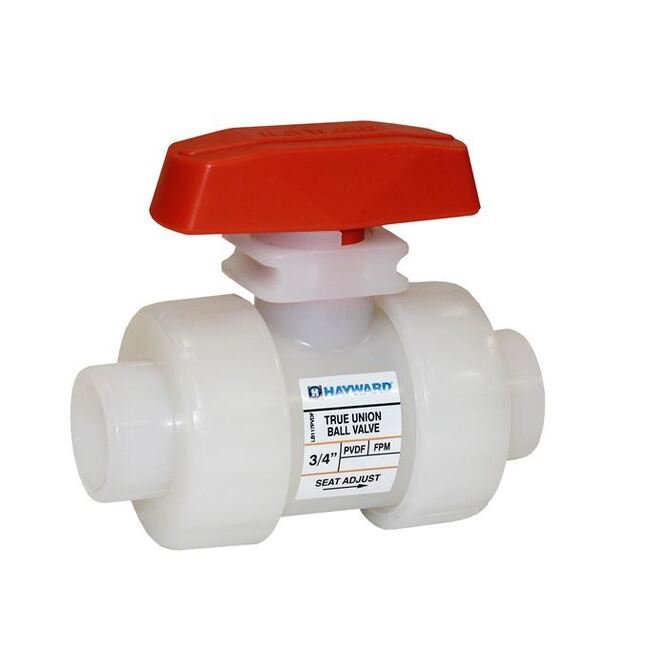

True Union Ball Valve - 3/4 PVDF with FPM O-rings and IPS Socket Fusion End Connections

Name: True Union Ball Valve - 3/4 PVDF with FPM O-rings and IPS Socket Fusion End Connections
Brand: Hayward Flow Control
SKU: TRU-204a06
Price: 89.99 USD
Availability: OutOfStock

SKU:TRU-204a06

Durable True Union Ball Valve - 3/4 PVDF, FPM Seals, Socket Fusion, 150 psi, NSF/ANSI 61-G Listed

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The True Union Ball Valve from the TB Series is crafted with PVDF material, ensuring durability and chemical resistance suitable for industrial and institutional applications. Featuring FPM O-rings and IPS Socket Fusion End Connections, this valve guarantees a secure and leak-free operation. With a pressure rating of 150 psi, Cv Coefficient of 16.0, and bi-directional flow configuration, it offers precise control and reliability. Compliant with NSF/ANSI 61-G standards, this valve meets the stringent requirements for safe water systems in both consumer and government facilities.

Product Specifications

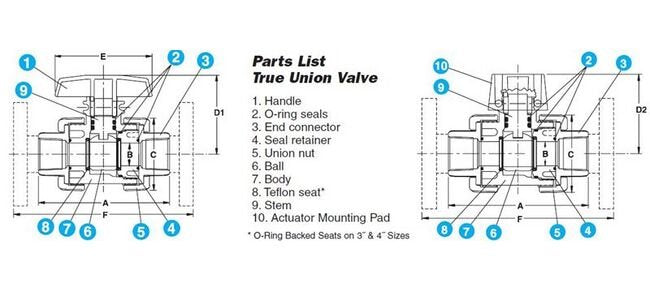

Dimensional Attributes A

4.84 in | 122.94 mm

Dimensional Attributes B

0.74 in | 18.80 mm

Dimensional Attributes C

2.59 in | 65.79 mm

Dimensional Attributes D1

2.98 in | 75.69 mm

Dimensional Attributes D2

2.77 in | 70.36 mm

Dimensional Attributes H

3.00 in | 76.20 mm

Specifications Body Material

PVDF

Specifications Cv Coefficient

16.0

Specifications End Connection

Socket Fusion

Specifications Flow Configuration

Bi-directional

Specifications Pressure Rating Non Shock

150 psi/ 10 bar

Specifications Seals

FPM

Specifications Series

Specifications Size

3/4"

Specifications Weight

0.75 lb | 0.34 kg
