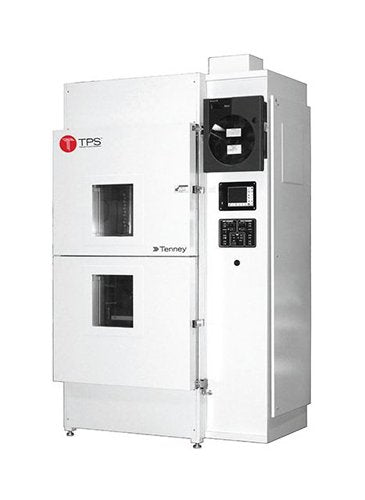

Thermal shock testing from -73°C to +40°C (cold chamber) and +40°C to + 200°C (hot chamber) Tenney Environmental Reach-In Thermal Shock Test Chambers. Featuring the Smart1.0 Controller For the safe, efficient, and accurate environmental testing of your electronic devices, components, and assemblies; consumer products; and military devices
Product Specifications
Specifications Applications
Aerospace | Consumer Products | Electronics | Military and Defense | Telecommunications
Specifications Benefits
Alarm and shutdown circuit provide over/under temperature protection to ensure product safety and accurate test results | Available in two sizes | Efficient refrigeration system provides thermal capability to meet temperature stabilization times for military specifications. | Limit switches stop the transfer process and allow fro precise product positioning | Meets military standard 883 method 1010.8 with 15 Pounds (lb)of product | Provides 281 cubic feet of internal workspace | Value priced - water cooled vs. liquid nitrogen cooling
Specifications Carriage Capacity
8 ft³
Specifications Carriage Depth
25 in | 63.5 cm
Specifications Carriage Height
23 in | 25 in | 58.4 cm | 63.5 cm
Specifications Carriage Width
23 in | 25 in | 58.4 cm | 63.5 cm
Specifications Cold Chamber Temperature Range
-73 to 40 ºC
Specifications Control Tolerance Measured At Air Leaving Conditi
1 ºC
Specifications Exterior
105 Inch (in) OAH Chamber | 125 Inch (in) OAH With travelling port fully extended | 76 Inch (in) OAW Chamber | 96 Inch (in) OAD Chamber
Specifications Features
Vertical air circulation | 2 Inch (in) traveling port | Open-air, rapid-responding, low-mass, nichrome wire heating elements | Two zone types with hot/cold compartment setups | Cascade refrigeration system with TEV control and two semi-hermetic compressors | Vapor-tight, interior liners made of 100% continuously welded stainless steel | Vertical configurations | Fiberglass and polyurethane insulation ensures minimal thermal transfer | Double-gasket doors provide additional insulation | Door switch | Limit switch | Dual-carriage transport system with stainless steel, wire mesh basket
Specifications Heat
4 kW | 42 kW
Specifications Hot Chamber Temperature Range
40 to 200 ºC
Specifications Options
15 Inch (in) x 15 Inch (in) viewing windows with chamber lights | Additional Wire Mesh Type Basket | Available in 230V-3PH-60Hz or 460V-3PH-60Hz | DR4300 2 Pen Recorder | Dry Air Purge System per chamber | IEEE Communications | Main Power Disconnect | OTP TempGard per chamber | Specview Software
Specifications Product Load
56 lb
Specifications Refrigeration
30 hp
Specifications Vertical Depth
88 in | 223.5 cm
Specifications Vertical Height
75 in | 190.5 cm
Specifications Vertical Width
99 in | 251.5 cm
Specifications Weight
5200 lb
