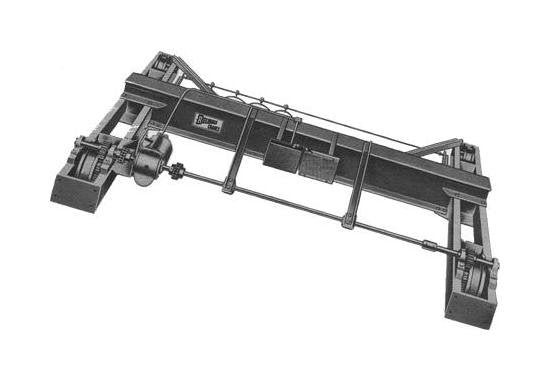

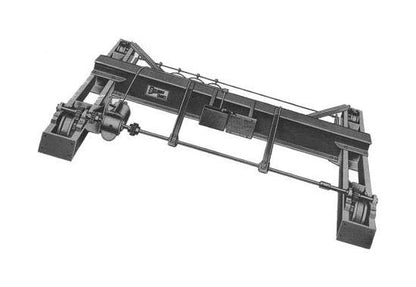

The TSS Motor Driven Single Girder Overhead Crane is a top-running crane designed for extreme conditions, suitable for both indoor and outdoor use. With a capacity of 2 tons and a span of 30 feet, this crane features a sturdy S18 x 54.7 girder size for superior stability. It offers motorized operation, ensuring efficient handling in demanding environments. Equipped with safety features such as runway collectors and bare copper wire bridge conductors, this crane is ideal for industrial applications requiring reliable performance.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
3200 lbs.

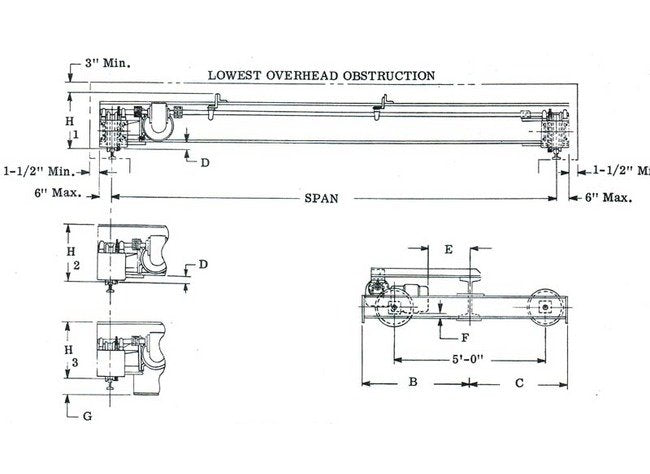

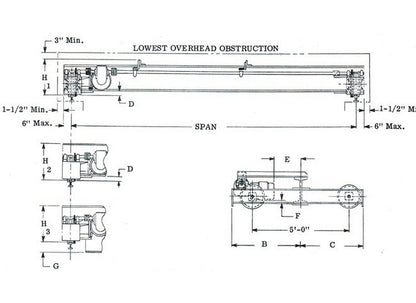

Specifications Dimension B
3'-2"
Specifications Dimension C
3'-0"
Specifications Dimension D
3/4 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
2 inches
Specifications Dimension G
2 inches
Specifications Dimension H1
22 inches
Specifications Dimension H2
19 inches
Specifications Dimension H3
13 inches
Specifications Electric
&nbps;
Specifications Girder Size
S18 x 54.7
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
30'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
8 inches
Specifications Wheel Load Per Wheel
3130 lbs.
