TUFF GUARD EPDM Diaphragm Gauge Isolator
TUFF GUARD EPDM Diaphragm Gauge Isolator
SKU:GAU-0726db
Enhanced TUFF GUARD EPDM Diaphragm Gauge Isolator - Ideal for protecting and isolating pressure sensing instruments with precision and durability.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
TUFF GUARD EPDM Diaphragm Gauge Isolator
$189.99
Quantity: 1
Claim Your Seller Account
TUFF GUARD EPDM Diaphragm Gauge Isolator
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

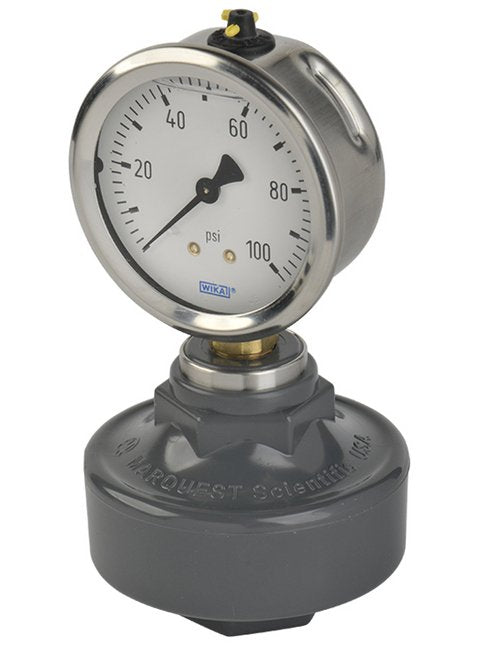

The TUFF GUARD EPDM Diaphragm Gauge Isolator features a 1/2" Female NPT inlet connection with a PVC body and EPDM diaphragm. Designed to protect and isolate pressure sensing instruments, this isolator offers impermeable EPDM diaphragm convoluted for accurate pressure transmission. The gauge is stainless steel and brass, with a range of 0-200 PSI. Its reinforced process connection ensures durability, meeting or exceeding ANSI Schedule 120 standards. With a self-venting internal shape for easy filling, this isolator also provides field serviceability with integral wrench provisions and a replaceable diaphragm. Low profile design eliminates dead volume, making it an ideal choice for precise and efficient pressure isolation.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0

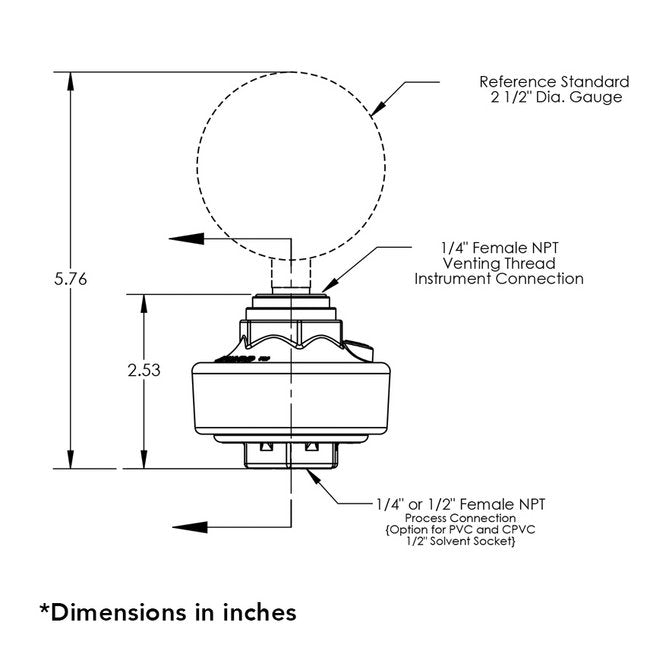

The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-200 PSI, SS, Brass
Specifications List Price
200.95 USD
Specifications Materials
PVC, EPDM Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
