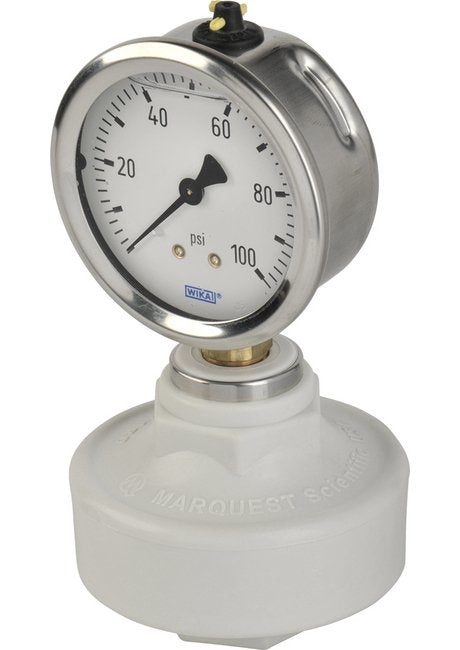

TUFF Guard Gauge Isolator with Wika SS/Brss 213.53 2.5" Gauge
TUFF Guard Gauge Isolator with Wika SS/Brss 213.53 2.5" Gauge
SKU:GAU-b83712
Protect sensitive instruments with TUFF Guard Gauge Isolator. Polypro body, Viton diaphragm, 0-60 PSI Wika SS/Brss 2.5" Gauge.
Regular price
$235.95
Regular price
Sale price
$235.95
Unit price
per
Initiate Order
TUFF Guard Gauge Isolator with Wika SS/Brss 213.53 2.5" Gauge
$235.95
Quantity: 1
Claim Your Seller Account
TUFF Guard Gauge Isolator with Wika SS/Brss 213.53 2.5" Gauge
$235.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TUFF Guard Gauge Isolator features a Viton diaphragm with a 1/2" Female NPT Inlet Connection, providing impeccable pressure isolation for sensitive instruments. Crafted with a Polypro body and a durable Viton diaphragm, this isolator ensures accurate pressure transmission. The included Wika Stainless Brass 2.5" Gauge, calibrated from 0-60 PSI, guarantees precise pressure monitoring. With a low profile design that eliminates dead volume and simple installation, this isolator is ideal for industries requiring efficient pressure containment and maintenance. Trust in the TUFF Guard Gauge Isolator to protect and enhance your pressure sensing instruments.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-60 PSI, SS, Brass
Specifications List Price
235.95 USD
Specifications Materials
PP, Viton Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
