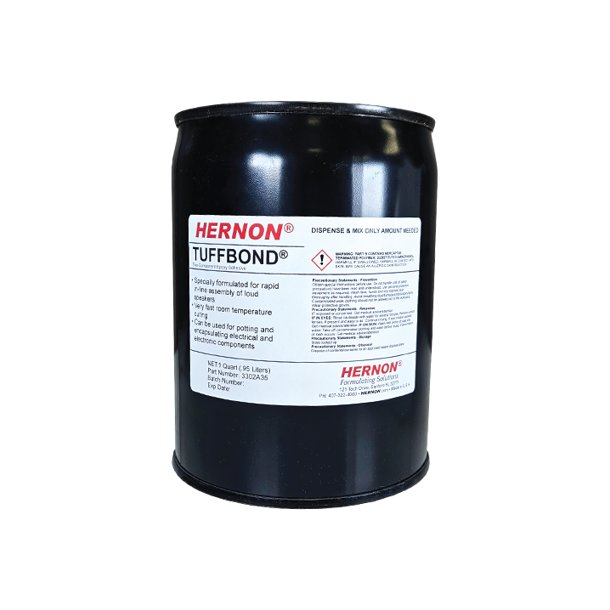

Tuffbond® 317 1 Quart Epoxy Adhesive
Tuffbond® 317 1 Quart Epoxy Adhesive
SKU:TUF-33eb34
Tuffbond® 317 Epoxy Adhesive: Hardness, Flexibility, ISO-9001 Compliant
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Tuffbond® 317 1 Quart Epoxy Adhesive
$49.99
Quantity: 1
Claim Your Seller Account
Tuffbond® 317 1 Quart Epoxy Adhesive
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your bonding projects with the Tuffbond® 317 Epoxy Adhesive. This versatile 1 quart product offers exceptional hardness, flexibility, and high resistance to chemicals and solvents. Ideal for bonding metal, glass, wood, concrete, and rubber, this adhesive is a reliable choice for potting and encapsulating electrical components. With ISO-9001 compliance, the Tuffbond® 317 ensures quality and performance for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Benefits Benefits
Excellent resistance to chemicals, alcohols and solventsGood Water resistanceGood Toughness and FlexibilityOutstanding resistance to abrasionLow temperature cure - Non-critical mixing
Dispensing Equipment Dispensing Equipment
Hernon® offers a complete line of semi and fully automated dispensing equipment. Contact Hernon® Sales for additional information.
Fda Status Fda Status
Cured coating formulated with Tuffbond® 317 epoxy resins, crosslinking agents and adjuncts may be safely used as food-contact surfaces and conform to listing in section 175.300, Title 21 (21 CFR 175.300) of the Code of Federal Regulations. The cured Tuffbond® 317 epoxy coating may be applied over a metal or other suitable substrate as a continuous film that serves as a functional barrier between food and the substrate. Please review the regulations.
General Information General Information
This product is not recommended for use in pure oxygen and/or oxygen rich systems and should not be selected as a sealant for chlorine or other strong oxidizing materials.
Note Note
These suggestions and data are based on information we believe to be reliable and accurate, but no guarantee of their accuracy is made. Hernon manufacturing®, inc. shall not be liable for any damage, loss or injury, direct or consequential arising out of the use or the inability to use the product. in every case, we urge and recommend that purchasers, before using any product in full scale production, make their own tests to determine whether the product is of satisfactory quality and suitability for their operations, and the user assumes all risk and liability whatsoever, in connection therewith. hernon's quality management system for the design and manufacture of high-performance adhesives and sealants is registered to the ISO 9001 quality standard.
Storage Storage
Tuffbond® 317 should be stored in a cool, dry location in unopened containers at a temperature between 45ºF to 85ºF (7ºC to 29ºC) unless otherwise labeled. Optimal storage is at the lower half of this temperature range. To prevent contamination of unused material, do not return any material to its original container.
Technical Specs Brands
Hernon Manufacturing, Inc
Technical Specs Industry Standards
International Organization for Standardization (ISO-9001)
Technical Specs Substrates
Composite | Metal | Plastic | Stone | USDA Approved | Wood
Technical Specs Volume
1 qt
Applications Applications
Marine coatingUnderwater coatingPotting electronic boardsEncapsulating electrical and electronic componentsRepair bond for jointsGlass reinforcement resinPottingBonding
Properties Cured Coefficient Of Thermal Expansion K 1 Af
165 x 10-6 | 200 x 10-6
Properties Cured Coefficient Of Thermal Expansion K 1 Be
40 x 10-6 | 72 x 10-6
Properties Cured Dielectric Constant At 1 Kilohertz Khz
2.4
Properties Cured Dielectric Strength
5 to 7 V/m
Properties Cured Dissipation Factor At 1 Kilohertz Khz F
0.0048
Properties Cured Glass Transition Temperature Tg
108.8 ºC | 37 ºC | 64.7 ºC
Properties Cured Hardness Shore D
60 to 70 duro | 70 to 80 duro
Properties Cured Modulus
244,366.23 psi
Properties Cured Results For Mixing Ratio Part A Part B
1:1 | 1:2 | 2:1
Properties Cured Tensile Strain Elongation At Break
6.54 %
Properties Cured Tensile Strength
7,012.27 psi
Properties Cured Test Method For Coefficient Of Thermal
ASTM D696
Properties Cured Test Method For Tensile Strength
American Society for Testing and Materials (ASTM) D638
Properties Cured Thermal Conductivity
0.24 W/m·K
Properties Cured Working Life At 22 Degree Celsius C Tem
â¤120 min | â¤150 min | 210 to 240 min
Properties Uncured Part A Appearance
Clear
Properties Uncured Part A Base
Epoxy
Properties Uncured Part A Mix Ratio By Weight
100
Properties Uncured Part A Specific Gravity
1.17
Properties Uncured Part A Viscosity At 25 Degree Celsius
10,000 to 20,000 cP
