Tuffsil Silicone Wire, 1.78mm OD, Red, 22 AWG, 5kV DC, 600VDC - 100KVDC
Tuffsil Silicone Wire, 1.78mm OD, Red, 22 AWG, 5kV DC, 600VDC - 100KVDC
SKU:WIR-749bf4
High-performance Tuffsil Silicone Wire, Red, 22 AWG, 1.78mm OD, 5kV DC, Flame Resistant, RoHS Compliant
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Tuffsil Silicone Wire, 1.78mm OD, Red, 22 AWG, 5kV DC, 600VDC - 100KVDC
$15.99
Quantity: 1
Claim Your Seller Account
Tuffsil Silicone Wire, 1.78mm OD, Red, 22 AWG, 5kV DC, 600VDC - 100KVDC
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

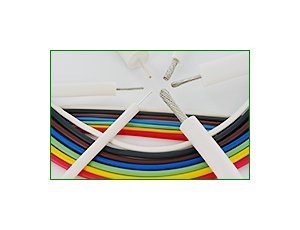

The Tuffsil Silicone Wire offers exceptional performance with 'TUFFSIL' insulation and a silver-plated conductor as a standard feature. Ideal for high-temperature applications ranging from -55°C to 200°C (250°C Intermittent), it boasts high flexibility and meets various specifications like high voltage requirements from 600VDC to 100KVDC. This wire, with a finished outer diameter of 1.78mm, is ozone, corona, and radiation-resistant, flame-resistant meeting UL 3239 VW-1 Flame Test standards. Compliant with MIL-W-16878 and RoHS guidelines, this wire can be customized upon request for specific constructions, making it a versatile choice for your wiring needs.
Product Specifications
Additional Information Additional Information
Ozone and corona ResistantRadiation ResistantFlame Resistance meets the UL 3239 VW-1 Flame TestReference: MIL-W-16878RoHS Compliant
Note 0
Standard Construction. Special Constructions such as tin plated conductors and other conductor constructions are available upon request.
Specifications Color
Red
Specifications Direct Current Dc Voltage
5 kV
Specifications Finished Outer Diameter Od
1.78 mm | 0.070 in
Specifications Manufacturer
Wiremax
Specifications Stranding Construction
19/34
Specifications Wire Size
22 AWG
