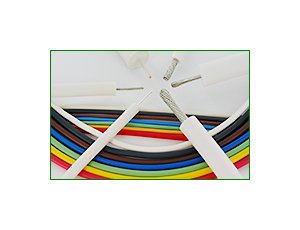

Tuffsil Silicone Wire, 4.22mm O.D., 20AWG, 25kV DC
Tuffsil Silicone Wire, 4.22mm O.D., 20AWG, 25kV DC
SKU:WIR-835a29
High-temp Tuffsil Silicone Wire for 25kV DC applications, flexible & flame-resistant
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Tuffsil Silicone Wire, 4.22mm O.D., 20AWG, 25kV DC
$15.99
Quantity: 1
Claim Your Seller Account
Tuffsil Silicone Wire, 4.22mm O.D., 20AWG, 25kV DC
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tuffsil Silicone Wire features a high-temperature range of -55°C through 200°C, with intermittent use up to 250°C, making it ideal for demanding applications. Silver-plated conductors ensure high voltage capability from 600VDC to 25kV, offering reliable performance. With a flexible design and ozone, corona, and radiation resistance, this wire is flame-resistant meeting UL 3239 VW-1 Flame Test standards. Compliant with MIL-W-16878 and RoHS, it can be customized with tin-plated conductors upon request.
Product Specifications
Additional Information Additional Information
Ozone and corona ResistantRadiation ResistantFlame Resistance meets the UL 3239 VW-1 Flame TestReference: MIL-W-16878RoHS Compliant
Note 0
Standard Construction. Special Constructions such as tin plated conductors and other conductor constructions are available upon request.
Specifications Color
Black
Specifications Direct Current Dc Voltage
25 kV
Specifications Finished Outer Diameter Od
4.22 mm | 0.166 in
Specifications Manufacturer
Wiremax
Specifications Stranding Construction
19/34
Specifications Wire Size
20 AWG
